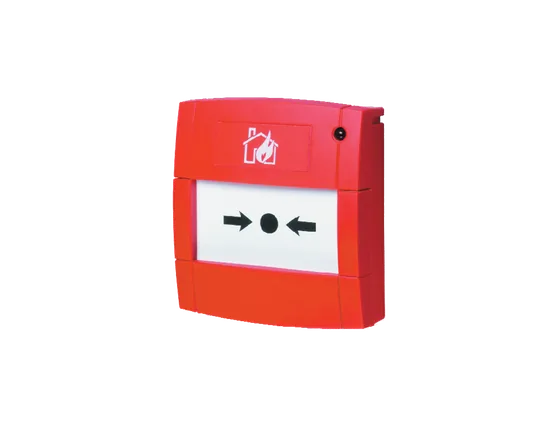

System Sensor MCP2A Conventional Indoor Manual Call Point, Red (with or without Backbox)
A red conventional indoor call point with a plug and play terminal block, available without a backbox (MCP2A/R470FF/01) or with a backbox (MCP2A/R470SF/01). It can be set up as break glass or resettable by changing the element.
- Plug and play terminal block, no re-termination needed
- Break glass or resettable by changing the element
- LED indicator, resistor and normally open clean contact options
- 30VDC maximum, 2 Amps current rating
- IP24D, PC/ABS body in red RAL 3001
- 110g flush, 160g surface
Specifications
Specifications
| Specification | MCP2A/R470FF/01 | MCP2A/R470SF/01 |
|---|---|---|
| Connection Details: | See Figure .1 | See Figure .1 |
| Cable Termination: | 0.5-2.5mm2 | 0.5-2.5mm2 |
| Maximium Voltage: | 30VDC | 30VDC |
| Current Rating: | 2 Amps | 2 Amps |
| Humidity: | 0-95% non-condensing | 0-95% non-condensing |
| Ingress Protection (IP) Rating: | IP24D | IP24D |
| Material: | PC/ABS | PC/ABS |
| Weight: | 110g Flush | 160g Surface | 110g Flush | 160g Surface |
| Colour: | Red, Ral 3001 | Red, Ral 3001 |
| Model | MCP2A/R470FF/01 | MCP2A/R470SF/01 |
| Description | Conv. MCP, Red, with LED ,470 Ohm, W/O Back Box, India | Conv. MCP, Red, with LED, 470 Ohm, with BB, India |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
