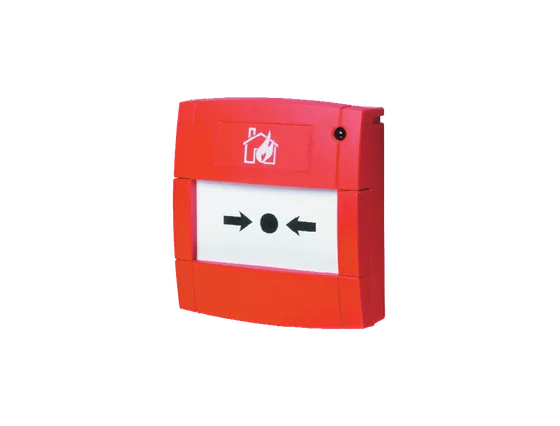

A flexi-element call point supplied with a backbox for surface mounting, with a plug and play terminal block and a choice of break glass or resettable operation. Confirm the contact arrangement with FPS when ordering.
| Specification | MUS3A/G000SF/12 |
|---|---|
| Connection Details: | See Figure .1 |
| Cable Termination: | 0.5-2.5mm2 |
| Maximium Voltage: | 30VDC |
| Current Rating: | 2 Amps |
| Humidity: | 0-95% non-condensing |
| Ingress Protection (IP) Rating: | IP24D |
| Material: | PC/ABS |
| Weight: | 110g Flush | 160g Surface |
| Colour: | Red, Ral 3001 |
| Model | MUS3A/G000SF/12 |
| Description | Conv. MCP, Green, Single Pole, Flexi, with BB, India |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
A red conventional indoor call point with a plug and play terminal block, available without a backbox (MCP2A/R470FF/01) or with a backbox (MCP2A/R470SF/01). It can be set up as break glass or resettable by changing the element.
A single-pole flexi-element call point for flush mounting, with a plug and play terminal block and a choice of break glass or resettable operation.
A dual-pole flexi-element call point supplied with a backbox for surface mounting, with a plug and play terminal block and a choice of break glass or resettable operation.
A flexi-element call point supplied with a backbox for surface mounting, with a plug and play terminal block and a choice of break glass or resettable operation. Confirm the contact arrangement with FPS when ordering.
An intrinsically safe break glass call point for 2-wire fire alarm systems in hazardous environments where combustible gas is present. It connects to a compatible panel or through a monitoring module.
A dual-action pull station with a built-in addressable interface, for any Notifier intelligent panel except the FireWarden series and the NSP-25 panel.
A non-coded addressable call point that gives a Notifier intelligent panel one addressable alarm point. It works with all Notifier intelligent panels and runs automatically in FlashScan mode.
An addressable break glass call point for the Morley UL range, addressed with a rotary decade switch and tested with a specialist key that lowers the glass and releases the micro-switch.
An addressable manual call point for raising the fire alarm by hand, with a resettable operating element and a built-in isolator. It works with XP95, Discovery and CoreProtocol.
A green addressable call point commonly used to release secure doors or barriers by hand in an emergency. It works with XP95, Discovery and CoreProtocol.
Single action push button call point for addressable loops, with a built-in short circuit isolator and a resettable operating element. Approved to EN 54-11 and EN 54-17 and certified by LPCB; TI-002431 is the new variant.
