Apollo Intelligent Manual Call Point, Red, with Isolator
An addressable manual call point for raising the fire alarm by hand, with a resettable operating element and a built-in isolator. It works with XP95, Discovery and CoreProtocol.

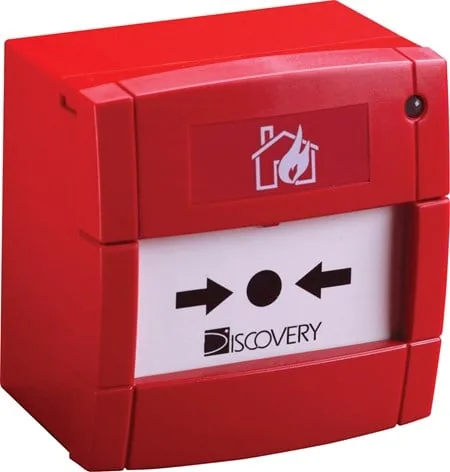

Authorised distributor for ApolloApollo Discovery Manual Call Point
The non-isolating Discovery addressable call point, reporting an alarm in under 0.2 seconds on XP95 and Discovery loops.
- EN 54-11 certified
- Reports an alarm in under 0.2 seconds
- Plug and play terminals and continuity link
- Semi flush or surface mounting
- IP24D, -20 to 60°C
- LPCB and CPR approvals, 10 year warranty
Standards and approvals: EN 54-11, LPCB, CPR
Specifications
Specifications
| Specification | 58100-910APO |
|---|---|
| Warranty | 10 year |
| Wireless | No |
| Colour | Red |
| Weight | 180g |
| Materials housing | Polycarbonate |
| Product length | 88mm | 3.46in |
| Product width | 88mm | 3.46in |
| Product depth | 59mm | 2.32in |
| Detection principle | Operation of a switch. |
| Key type | KAC, Manal, Call, Point test & reset key |
| Analogue value nominal | 16 |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Protocol voltage | 5 to 9V peak to peak |
| Power-up surge current | 1mA |
| Quiescent current | 100μA |
| Polarity | L1 &, L2 are polarity sensitive |
| Loop powered | Yes |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Operating temperature (min) | -20°C | -4°F |
| Operating temperature (max) | 60°C | 140°F |
| Operating temperature | -20 to 60°C | -4 to 140°F |
| IP rating Value | IP24D |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
