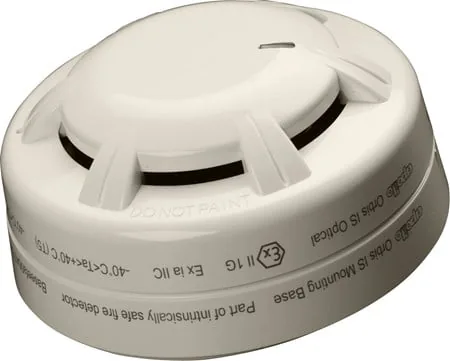

Authorised distributor for ApolloAn intrinsically safe conventional optical smoke detector for hazardous areas such as refineries and offshore platforms. It works on the light scatter principle and suits places where slow burning or smouldering fires are likely.
Standards and approvals: BV, LR, LPCB, IECEx, FG, DNV.GL, BASEEFA, BOSEC, CCS, VdS, CPR, PESO (CCoE), ABS, MED
| Specification | ORB-OP-52027-APO |
|---|---|
| Warranty | 10 year |
| Applications | Dusty environments, Escape routes, Hazardous areas, Offshore platforms, Refineries, Small to medium buildings |
| Fire Type | Slow burning, smouldering fires |
| Colour | White |
| Sensor configuration | Chamber with surface-mount infrared emmiter and prism., Solid state integrated photo-diode and amplifier. |
| Weight | 75g |
| Materials housing | Polycarbonate |
| Product length | 42mm | 1.65in |
| Product diameter | 100mm | 3.94in |
| Detection principle | Photo-electric light scattering. |
| Chamber type | Chevron |
| Quiescent current | 85μA |
| Quiescent current tested at | 24V dc |
| Polarity | L1 &, L2 are polarity sensitive |
| Sampling frequency | Once every 4 seconds |
| Minimum 'detector active' voltage | 12V |
| Holding voltage (min) | 5V |
| Minimum voltage to light alarm LED | 6V |
| Alarm reset time | 1s |
| Alarm load | 325Ω in series with a 1.0V drop |
| Humidity (max) | 98%, RH |
| Humidity (min) | 0%, RH |
| IP rating Value | IP23D |
| Storage temperature (max) | 70°C |
| Storage temperature (min) | -40°C |
| Storage temperature | -40 to 70°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
A conventional optical smoke detector that senses smoke in its chevron chamber by photo-electric light scattering and responds well to slow burning, smouldering fires. It comes in a standard and a flashing LED version, and its LED is clear in normal state and lights red in alarm.
A conventional heat detector that monitors temperature with a dual thermistor network, classed A1R to EN 54-5: the lowest temperature band, with rate of rise response. It suits places where smoke detectors are unsuitable, such as dirty, smoky or steamy areas.
A conventional heat detector in class BR, for areas that run warmer than a normal room, with rate of rise response. Its dual thermistor network gives a voltage output that follows the surrounding air temperature.
A conventional heat detector in class CR, for areas with higher normal temperatures, that also responds to a fast rise in temperature. Its dual thermistor network gives an output that follows the surrounding air temperature.
A conventional heat detector in class CS, which responds at a fixed temperature in the higher C band rather than to a rate of rise. Its dual thermistor network follows the surrounding air temperature.
A conventional optical smoke detector using the light scatter principle, with sensing technology designed to reduce false alarms. It responds well to slow burning, smouldering fires.
A battery operated, Wi-Fi enabled photoelectric smoke detector from the IMPACT by Honeywell range. When smoke reaches its alarm threshold it sounds a buzzer, flashes an LED and sends real-time alerts to a smartphone through the IMPACT by Honeywell app.
A battery operated standalone smoke alarm with photoelectric sensing that sounds an alarm and lights a red LED when smoke reaches its threshold. It runs on two AA batteries and also warns of a low battery or a chamber fault.
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.
An intelligent photoelectric smoke detector with dual thermistors that add 135°F (57°C) fixed temperature heat sensing in the same head.
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
