Bosch FAP-425-O and FAP-425-O-R Optical Smoke Detectors, AVENAR detector 4000
Analog addressable smoke detectors with one optical sensor. The FAP-425-O sets its address automatically; the FAP-425-O-R adds rotary switches for manual addressing.

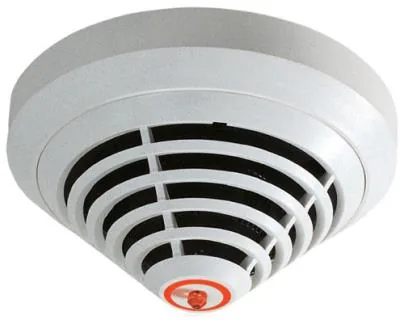

Dealer for BoschBosch FAH-425-T-R Heat Detector, AVENAR detector 4000
An analog addressable heat detector with one thermal sensor, for fires with a rapid temperature rise or a maximum temperature, with manual and automatic addressing.
- Single thermal sensor
- Intelligent Signal Processing (ISP)
- Monitors the surroundings for electromagnetic interference
- Rotary switches for manual addressing, or automatic address setting
- Operating voltage 15 to 33 volts DC, operating temperature -20 to 50°C
- Bosch lists CPR and VdS certificates
Standards and approvals: CPR, VdS
Specifications
Specifications
| Specification | FAH-425-T-R |
|---|---|
| Weight (g) | 75 |
| Nominal current (mA) | 0.55 |
| Nominal voltage (VDC) | 28 |
| Operating voltage (VDC) | 15 to 33 |
| Current consumption (mA) | 0.55 |
| Operating temperature (°C) | -20 to 50 |
| Storage temperature (°C) | -25 to 80 |
| Permissible air speed (m/s) | 20 |
| Operating relative humidity, non-condensing (%) | 15 to 95 |
| Storage relative humidity (%) | 15 to 95 |
| LSN current consumption (mA) | 0.55 |
| Dimensions (Ø x H) (cm) | 9.95 x 5.20 |
| Class of equipment (IEC 62368-1) | III |
| Color | White |
| Material | Plastic |
| Mounting type | Ceiling-mounted |
| Detection principle | Thermal |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
More Bosch Addressable Detectors
Bosch FAP-425-OT and FAP-425-OT-R Optical/Thermal Multisensor Detectors, AVENAR detector 4000
Analog addressable multisensor detectors with one optical and one heat sensor. The FAP-425-OT is auto-addressing; the FAP-425-OT-R also has rotary switches.
Bosch FAP-425-DO-R Dual-Optical Smoke Detector, AVENAR detector 4000
An analog addressable smoke detector with two optical sensors (Dual-Ray technology) for early detection of light smoke, with manual and automatic addressing.
Bosch FAP-425-DOT-R Dual-Optical/Thermal Multisensor Detector, AVENAR detector 4000
An analog addressable multisensor detector with two optical sensors and one heat sensor, with manual and automatic addressing.
Bosch FAP-425-DOTC-R Dual-Optical/Thermal/Chemical (CO) Multisensor Detector, AVENAR detector 4000
An analog addressable multisensor detector with two optical sensors, one heat sensor and one CO gas sensor, with manual and automatic addressing.
Bosch FAP-425-DOTCO-R Dual-Optical/Thermal/CO Detector with 10 Year CO Cell, AVENAR detector 4000
An analog addressable detector with two optical sensors, one heat sensor and one CO gas sensor, whose CO cell Bosch rates for a 10 year life.
