Bosch FAP-425-O and FAP-425-O-R Optical Smoke Detectors, AVENAR detector 4000
Analog addressable smoke detectors with one optical sensor. The FAP-425-O sets its address automatically; the FAP-425-O-R adds rotary switches for manual addressing.

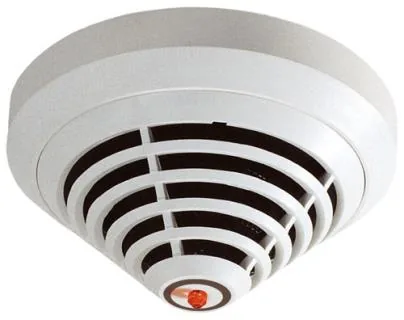

Dealer for BoschBosch FAP-425-OT and FAP-425-OT-R Optical/Thermal Multisensor Detectors, AVENAR detector 4000
Analog addressable multisensor detectors with one optical and one heat sensor. The FAP-425-OT is auto-addressing; the FAP-425-OT-R also has rotary switches.
- Optical smoke sensor combined with a thermal sensor
- Intelligent Signal Processing (ISP)
- Monitors the surroundings for electromagnetic interference
- Automatic address setting, plus manual setting on the -R version
- Operating voltage 15 to 33 volts DC, operating temperature -20 to 50°C
- Bosch lists CPR and VdS certificates
Standards and approvals: CPR, VdS
Specifications
Specifications
| Specification | FAP-425-OT | FAP-425-OT-R |
|---|---|---|
| Weight (g) | 74 | 77 |
| Nominal current (mA) | 0.55 | 0.55 |
| Nominal voltage (VDC) | 28 | 28 |
| Operating voltage (VDC) | 15 to 33 | 15 to 33 |
| Current consumption (mA) | 0.55 | 0.55 |
| Operating temperature (°C) | -20 to 50 | -20 to 50 |
| Storage temperature (°C) | -25 to 80 | -25 to 80 |
| Permissible air speed (m/s) | 20 | 20 |
| Operating relative humidity, non-condensing (%) | 15 to 95 | 15 to 95 |
| Storage relative humidity (%) | 15 to 95 | 15 to 95 |
| LSN current consumption (mA) | 0.55 | 0.55 |
| Dimensions (Ø x H) (cm) | 9.95 x 5.20 | 9.95 x 5.20 |
| Class of equipment (IEC 62368-1) | III | III |
| Color | White | White |
| Material | Plastic | Plastic |
| Mounting type | Ceiling-mounted | Ceiling-mounted |
| Detection principle | Optical; Thermal | Optical; Thermal |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
