Bosch FAP-425-O and FAP-425-O-R Optical Smoke Detectors, AVENAR detector 4000
Analog addressable smoke detectors with one optical sensor. The FAP-425-O sets its address automatically; the FAP-425-O-R adds rotary switches for manual addressing.

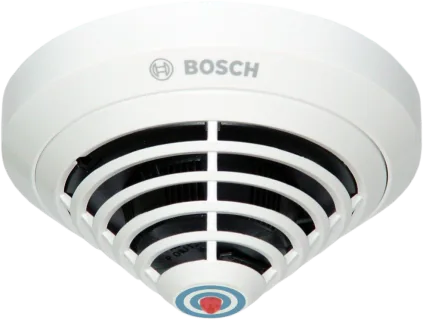

Dealer for BoschBosch FAP-425-DOTCO-R Dual-Optical/Thermal/CO Detector with 10 Year CO Cell, AVENAR detector 4000
An analog addressable detector with two optical sensors, one heat sensor and one CO gas sensor, whose CO cell Bosch rates for a 10 year life.
- Two optical sensors (Dual-Ray), a thermal sensor and a CO gas sensor
- CO sensor cell with a 10 year life cycle, in line with VdS 6017, VdS 6018 and VdS 6019
- Response sensitivity in accordance with EN 54-26, EN 54-30 and EN 54-31, as Bosch states
- Rotary switches for manual addressing, or automatic address setting
- Operating voltage 15 to 33 volts DC, operating temperature -10 to 50°C
- Bosch lists CPR and VdS certificates
Standards and approvals: CPR, VdS
Specifications
Specifications
| Specification | FAP-425-DOTCO-R |
|---|---|
| Weight (g) | 82 |
| Nominal current (mA) | 0.55 |
| Nominal voltage (VDC) | 28 |
| Operating voltage (VDC) | 15 to 33 |
| Current consumption (mA) | 0.55 |
| Operating temperature (°C) | -10 to 50 |
| Storage temperature (°C) | -20 to 50 |
| Permissible air speed (m/s) | 20 |
| Operating relative humidity, non-condensing (%) | 15 to 90 |
| Storage relative humidity (%) | 15 to 90 |
| LSN current consumption (mA) | 0.55 |
| Dimensions (Ø x H) (cm) | 9.95 x 5.20 |
| Class of equipment (IEC 62368-1) | III |
| Color | White |
| Material | Plastic |
| Mounting type | Ceiling-mounted |
| Detection principle | Chemical; Dual-optical; Thermal |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
