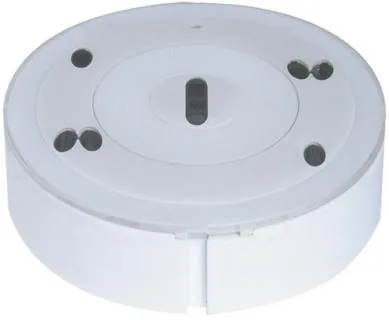

Dealer for BoschBosch FAP-O 520 Optical Smoke Detector, FAP-520 LSN improved, Ultra-Flat, White
An analog addressable optical smoke detector in an ultra-flat design for flush ceiling installation on LSN improved systems.
- Ultra-flat design with a smooth, easily cleaned surface
- Two integrated isolators keep the LSN loop working after a wire break or short circuit
- Uses the extended system parameters of LSN improved technology
- Installed in the FAA-500 base
- Operating voltage 15 to 33 volts DC, operating temperature -20 to 65°C, 170 g
- Bosch lists CPR, VdS, CB, CMIM, MOE and TMT certificates
Standards and approvals: CB, CMIM, CPR, MOE, TMT, VdS
Specifications
Specifications
| Specification | FAP-O 520 |
|---|---|
| Weight (g) | 170 |
| Operating voltage (VDC) | 15 to 33 |
| Current consumption (mA) | 3.25 |
| Operating temperature (°C) | -20 to 65 |
| Permissible air speed (m/s) | 20 |
| Operating relative humidity, non-condensing (%) | 0 to 95 |
| LSN current consumption (mA) | 3.26 |
| Dimensions (Ø x H) (cm) | 11.30 x 5.50 |
| Color | White |
| Material | Plastic |
| Mounting type | Ceiling-mounted |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
