Bosch FAP-425-O and FAP-425-O-R Optical Smoke Detectors, AVENAR detector 4000
Analog addressable smoke detectors with one optical sensor. The FAP-425-O sets its address automatically; the FAP-425-O-R adds rotary switches for manual addressing.

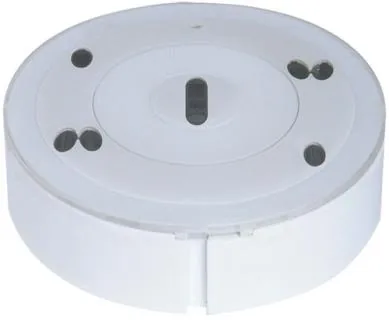

Dealer for BoschBosch FAP-OC 520 Optical/Chemical Multisensor Detector, FAP-520 LSN improved, Ultra-Flat, White
An analog addressable multisensor detector with an optical sensor and an additional gas sensor, in an ultra-flat design for flush ceiling installation on LSN improved systems.
- Optical smoke sensor plus a chemical (gas) sensor
- Ultra-flat design with a smooth, easily cleaned surface
- Two integrated isolators keep the LSN loop working after a wire break or short circuit
- Installed in the FAA-500 base
- Operating voltage 15 to 33 volts DC, operating temperature -10 to 50°C, 180 g
- Bosch lists CPR, VdS, CB, CMIM and TMT certificates
Standards and approvals: CB, CMIM, CPR, TMT, VdS
Specifications
Specifications
| Specification | FAP-OC 520 |
|---|---|
| Weight (g) | 180 |
| Operating voltage (VDC) | 15 to 33 |
| Current consumption (mA) | 3.25 |
| Operating temperature (°C) | -10 to 50 |
| Permissible air speed (m/s) | 20 |
| Operating relative humidity, non-condensing (%) | 0 to 95 |
| LSN current consumption (mA) | 3.26 |
| Dimensions (Ø x H) (cm) | 11.30 x 5.50 |
| Color | White |
| Material | Plastic |
| Mounting type | Ceiling-mounted |
| Detection principle | Chemical; Optical |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
