Notifier FSP-951 Intelligent Photoelectric Smoke Detector
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.

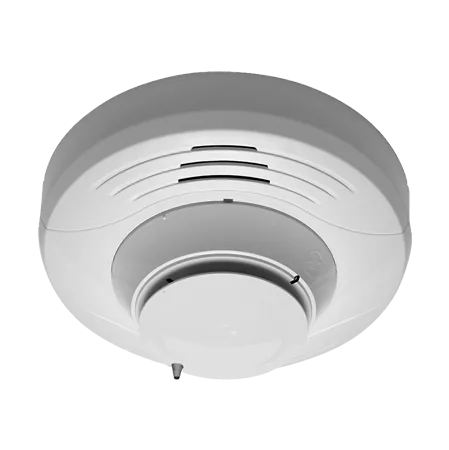

Dealer for NotifierNotifier FCO-951 Multi-Criteria Fire and CO Detector
An advanced multi-criteria detector that combines photoelectric, thermal, infrared and carbon monoxide sensing to give both fire and CO detection.
- Photoelectric, thermal, infrared and CO sensing in one head
- Notifier states heightened immunity to nuisance particles and enhanced sensitivity to real fires
- 10-year CO cell with end-of-life warning
- Low-profile design
- 0°C to 38°C, 15% to 90% RH non-condensing
- UL/ULC listed, CSFM listed
Standards and approvals: UL/ULC: S1111, CSFM: 7272-0028:0510
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Height | 2.7" (69 mm) installed in B200S series sounder base | |
| Diameter | 6.875" (175 mm) installed in B200S series sounder base | |
| Weight | 3.4 oz. (95 g) | |
| Color | White (-IV models are ivory) | |
| Operating Humidity Range | 15% to 90% Relative Humidity, Non- condensing | |
| Operating Temperature Range | 32°F to 100°F (0°C to 38°C) | |
| Air Velocity | 0 to 4000 ft./min. (0 to 1219.2 m/min.) | |
| Operating Voltage Range | 15 to 32 VDC | |
| Operating Current @ 24 VDC | 200 uA (one communication every 5 seconds with green LED blink on communication) | |
| Maximum Alarm Current | 2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on) | |
| Maximum Current | 4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on) | |
| Isolator Load Rating | 0.0063 |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
More Notifier Addressable Detectors
Notifier FSP-951T Photoelectric Smoke Detector with Thermal Sensing
An intelligent photoelectric smoke detector with dual thermistors that add 135°F (57°C) fixed temperature heat sensing in the same head.
Notifier FST-951 Intelligent Fixed Temperature Heat Detector, 135°F (57°C)
An intelligent addressable heat detector that uses a thermistor sensing circuit for 135°F (57°C) fixed temperature detection.
Notifier FST-951R Intelligent Rate-of-Rise Heat Detector
A low-profile intelligent addressable heat detector that responds to a rate of temperature rise of 15°F (8.3°C) per minute.
Notifier FST-951H Intelligent High Temperature Heat Detector, 190°F (88°C)
An intelligent addressable heat detector with a thermistor sensing circuit, factory preset to 190°F (88°C) for high temperature detection.
Notifier FSP-951-ISO Photoelectric Smoke Detector with Built-in Isolator
An intelligent plug-in photoelectric smoke detector with a built-in isolator, for FlashScan systems only.
