Notifier FSP-951 Intelligent Photoelectric Smoke Detector
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.

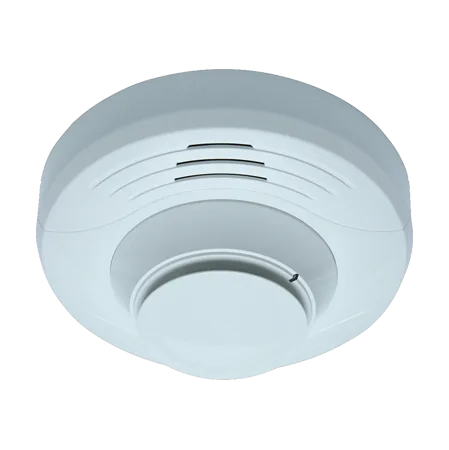

Dealer for NotifierNotifier FPC-951 Multi-Criteria Smoke and CO Detector
An intelligent detector combining photoelectric smoke and carbon monoxide sensing, meeting UL 268 7th edition for smoke and UL 2075 for system-connected CO detection.
- Combination smoke and CO detector
- Meets UL 268 7th edition and UL 2075
- 10-year CO cell with end-of-life warning
- Low-profile design
- 0°C to 50°C, 15% to 90% RH non-condensing
- UL listed (ULC as FPC-951A), CSFM listed
Standards and approvals: UL: S1115 (FPC-951), ULC: S1115 (FPC-951A), CSFM: 7272-0028:0510 (FPC-951)
Specifications
Specifications
| Specification | Details | Details | Details |
|---|---|---|---|
| Height | 2.7 in. (69 mm) installed in B200S series sounder base | ||
| Diameter | 6.875 in. (175 mm) installed in B200S series sounder bases | ||
| Weight | 3.4 oz. (95 g) | ||
| Color | White | ||
| Operating Humidity Range | 15% to 90% Relative Humidity, Non- condensing | ||
| Operating Temperature Range | 32°F to 122°F (0°C to 50°C) | ||
| Air Velocity | 0 to 4000 ft./min. (0 to 1219.2 m/min.) | ||
| Operating Voltage Range | 15 to 32 VDC | ||
| Operating Current @ 24 VDC | 200 uA (one communication every 5 seconds with green LED blink on communication) | ||
| Maximum Alarm Current | 2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on) | ||
| Maximum Current | 4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on) | ||
| Isolator Load Rating | 0.0063 | ||
| Communication Protocol | FlashScan® | ||
| NFS2-3030 | Firmware v27.0 or higher | ||
| NFS2-640, NFS-320 | Firmware v27.01 or higher |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
