Notifier FSP-951 Intelligent Photoelectric Smoke Detector
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.

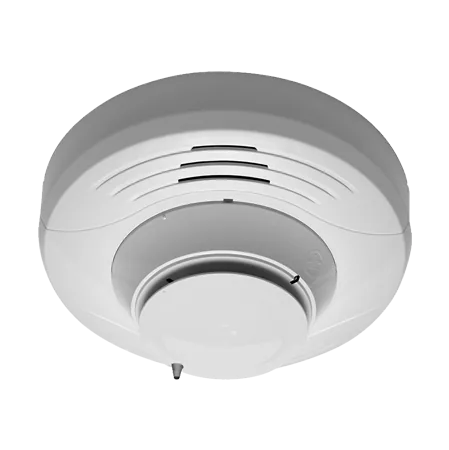

Dealer for NotifierNotifier FPTI-951 Multi-Criteria Photo, Thermal and Infrared Detector
An intelligent multi-criteria detector that combines photoelectric, thermal and infrared sensing to detect a wider range of fires, for use with ONYX Series panels.
- Photoelectric, thermal and infrared sensing
- For use with ONYX Series panels
- Analogue communications
- Dual LEDs for 360° visibility
- 0°C to 38°C, 15% to 90% RH non-condensing
- UL/ULC listed, FM approved, CSFM listed
Standards and approvals: UL/ULC: S1111, FM Approved, CSFM: 7272-0028:0510
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Height | 2.0" (51 mm) installed in B300(A)-6 base | |
| Diameter | 6.2" (156 mm) installed in B300(A)-6 base; 4.1" (104 mm) installed in B501-WHITE/-IV/-BL base | |
| Weight | 3.4 oz. (95 g) | |
| Color | White (-IV models are ivory) | |
| Operating Humidity Range | 15% to 90% Relative Humidity, Non- condensing | |
| Operating Temperature Range | 32°F to 100°F (0°C to 38°C) | |
| Air Velocity | 0 to 300 ft./min. (0 to 91.4 m/min.) | |
| Operating Voltage Range | 15 to 32 VDC | |
| Operating Current @ 24 VDC | 200 uA (one communication every 5 seconds with green LED blink on communication) | |
| Maximum Alarm Current | 2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on) | |
| Maximum Current | 4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on) | |
| Isolator Load Rating | 0.0063 |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
