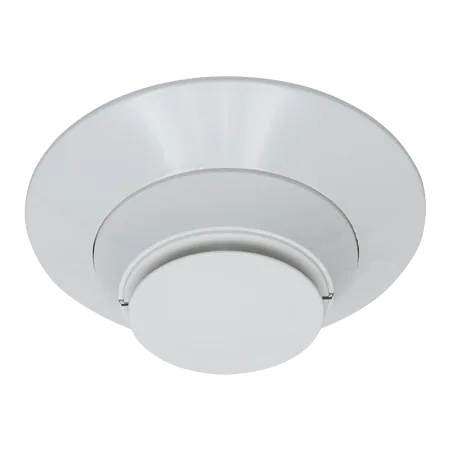

Dealer for NotifierNotifier FSV-951R Very Early Warning Photoelectric Detector
A high-sensitivity photoelectric smoke detector for very early warning fire detection, made to protect valuable assets and operations that must keep running.
- Very early warning fire detection
- Patented optic block that amplifies smoke signals and reduces stray internal reflections
- 15 to 32 VDC, 300 µA at 24 VDC
- Rotary address switches, dual LEDs for 360° visibility
- 0°C to 50°C, 10% to 93% RH non-condensing
Specifications
Specifications
| Specification | Details |
|---|---|
| Operating Voltage Range | 15 to 32 VDC |
| Operating Current @ 24 VDC | 300 uA (one communication every 5 seconds with green LED blink on communication) |
| Maximum Alarm Current | 2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on) |
| Maximum Current | 4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on) |
| Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range | 32°F to 122°F (0°C to 50°C) |
| Air Velocity | 0 to 4000 ft./min. (0 to 1219.2 m/min.) |
| Height | 2.0˝ (51 mm) installed in B300-6 Base |
| Diameter | 6.2˝ (156 mm) installed in B300-6 Base; 4.1˝ (104 mm) installed in B501 Base |
| Weight | 3.4 oz. (95 g) |
| Isolator Load Rating | 0.0063* *Please refer to your isolator base/module manual for isolator calculation instructions. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
