Notifier FSP-951 Intelligent Photoelectric Smoke Detector
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.

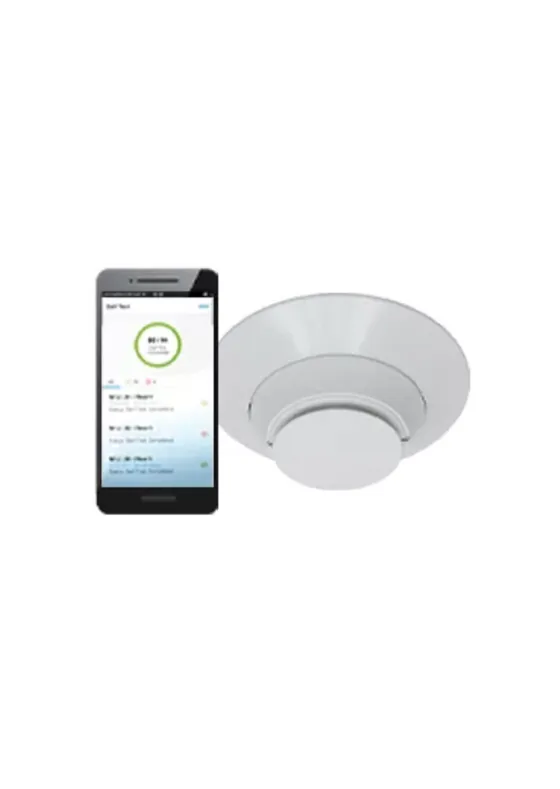

Dealer for NotifierNotifier INSPIRE Self-Test Detector Series
Detectors that carry out their own smoke and heat maintenance tests, without canned smoke or heat guns, when used with a compatible panel and the Self-Test app.
- Releases small amounts of smoke and heat into the chamber to test the sensors
- Checks automatically whether the dust cover is blocking smoke entry
- Covers functional test, smoke entry test and visual inspection check
- Listed to UL 268 7th edition and/or UL 521
- Two-wire SLC connection, rotary decimal addressing, 15 to 32 volts DC
- UL listed and FM approved, CSFM listed
Standards and approvals: UL Listed: S1115 (FSP-951-SELFT, FSP-951T-SELFT), S747, FM Approved, CSFM: 7270-0028:0502 (FST-951-SELFT), 7272-0028:0503
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Voltage range | 15 - 32 volts DC peak | |
| Standby current (max. avg.) | 200µA @ 24 VDC (one communica- tion every 5 seconds with LED enabled) | |
| Max current | 4.5 mA @ 24 VDC (“ON”) | |
| Sensitivity | • UL Applications:: Open Area: 2.86 - 5.0 %/FT obscuration, Special Application: 0.5 - 2.86 %/FT obscuration | |
| Size | 2.0" (51mm) high; base determines diameter: B300-6 series: 6.1" (15.6 cm) diameter, B501 series: 4" (10.2 cm) diameter For a complete list of detector bases see DN-60054 | |
| Shipping weight | 3.4 oz. (95 g) | |
| Operating temperature range | • FSP-951-SELFT: 32°F to 122°F (0°C to 50°C) • FSP-951T-SELFT: 32°F to 115°F(0°C to 47°C) • FST-951-SELFT:, Set for fixed-temperature or rate-of-rise (ROR):-4°F to 100°F (-20°C to 38°C), Set for high-heat:, 4°F to 150°F (-20°C to 66°C) | |
| UL Listed Velocity Range | 0-4000 ft/min. (1219.2 m/min.). Velocity range with Self-Test process in operation: 0-300 ft/min (91.4 m/min). | |
| Relative humidity | 10% to 93% non-condensing | |
| Thermal ratings | fixed-temperature set point 135°F (57°C), rate-of- rise detection 15°F (8.3°C) per minute, high temperature heat 190°F (88°C) | |
| Self-Test Operation | The Self-Test feature offers up to 150 tests before reaching an end of life. | |
| Mounting | To ensure the operation of the Self-Test feature, a detec- tor installed on the ceiling must remain in a ceiling-oriented position; those installed on the wall must remain in a wall-oriented position. | |
| Detector Spacing and Applications | NOTIFIER recommends spacing detectors in compliance with NFPA 72. For specific informa- tion regarding detector spacing, placement, and special applications refer to NFPA 72. A System Smoke Detector Application Guide, doc- ument SPAG91, is available at www.systemsensor.com. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
