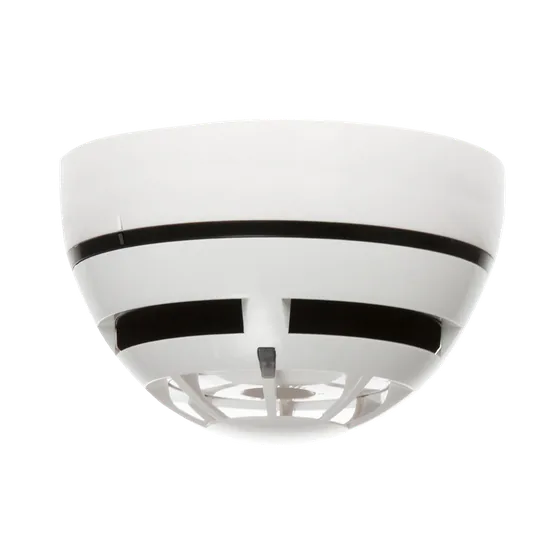

Authorised distributor for CeasefireWireless heat detector with multiple sensitivity settings, including Class A1R and Class BS, and twin LEDs visible from all around. Designed and tested to EN 54-5 and EN 54-25 and certified by IMQ.
Standards and approvals: EN 54-7, EN 54-25, IMQ, EN 54-5
| Specification | Details |
|---|---|
| Type | Wireless |
| Model/Product Code | TI-002279 |
| Alarm Temperature | 58oC (Class A1R) 78oC (Class BS) |
| Operating Frequency Range | 865 MHz |
| Battery Type | Main Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) Secondary Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) |
| Operating Frequency Channels | Multiple |
| Maximum Radiated Power | 14 dBm (25mW) |
| Battery Lifespan | Maximum 5 Years (Main Battery) Max. 2 Months (Secondary Battery) |
| Radio/Wireless Transmission Range | Max. 200M (In Open Space) |
| Ambient Temperature | -10°C to +55°C (no icing) |
| Relative Humidity | 95% (non condensing) |
| Dimensions | 110mm x 70mm (depth) |
| Standard | EN 54-7; EN 54-25 |
| Certification/Approval Authority | IMQ |
| LED Indicator | Bi-coloured LED indicator with 360o visibility. |
| Protection Class | IP40 |
| Mode of Addressing | Electronically Addressed |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
