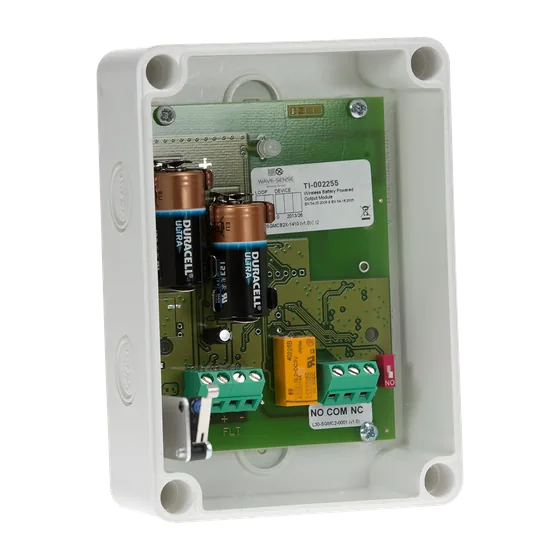

Authorised distributor for CeasefireWireless module with one output, offering a changeover relay rated 2 A at 30 V DC and a site programmable 12 V or 24 V output. Designed and tested to EN 54-18 and EN 54-25 and certified by IMQ.
Standards and approvals: EN 54-18, EN 54-25, IMQ
| Specification | Details |
|---|---|
| Type | Wireless |
| Model/Product Code | TI-002255 |
| Number Monitored Output Circuit | Single Output |
| Maximum Switched Volatge Rating | 30V DC |
| Maximum Switched Current Rating | 2A |
| Operating Frequency Channels | 7 |
| Maximum Radiated Power | 5 dBm (3mW) |
| Operating Frequency Range | 865 MHz |
| Battery Type | Main Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) Secondary Battery - Lithium Cell Battery CR2032 3V (0.24 Ahr) |
| Battery Lifespan | Maximum 5 Years (Main Battery) Max. 2 Months (Secondary Battery) |
| Radio/Wireless Transmission Range | Max. 150M (In Open Space) |
| Ambient Temperature | -10°C to +55°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Length x Width x Height) | 95mm x 135mm x 55mm |
| Standard | EN 54-18; EN 54-25 |
| Certification/Approval Authority | IMQ |
| LED Indicator | Bi-colour LED |
| Protection Class | IP65 |
| Mode of Addressing | Electronically Addressed |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
