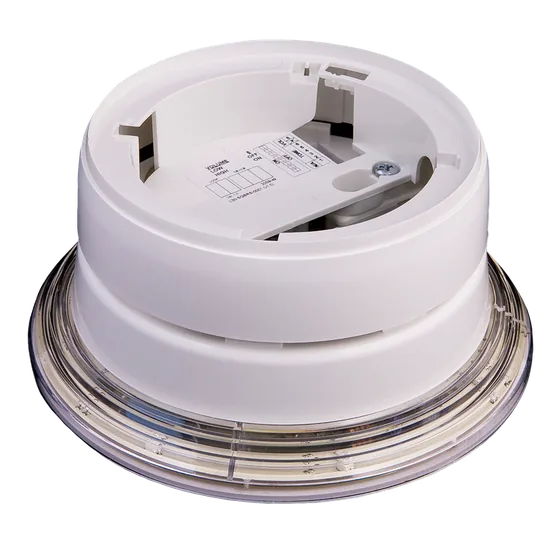

Authorised distributor for CeasefireWireless sounder base with an additional LED visual indicator flashing at 1 Hz, 32 tones and 70 to 95 dBA output depending on the tone. Designed and tested to EN 54-3 and EN 54-25 and certified by IMQ.
Standards and approvals: EN 54-3, EN 54-25, IMQ, EN 54-03
| Specification | Details |
|---|---|
| Type | Wireless |
| Model/Product Code | TI-002259 |
| Maximum Sound Output at 24 V DC | 70-95 dBA (tone dependent) |
| Number of Selectable Tones | 32 |
| Tone Frequency Range | 440 Hz to 2900 Hz |
| Operating Frequency Channels | 7 |
| Maximum Radiated Power | 5 dBm (3mW) |
| Flash Frequency | 1 Hz |
| Operating Frequency Range | 865 MHz |
| Battery Type | Main Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) Secondary Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) |
| Battery Lifespan | Maximum 5 Years (Main Battery) Max. 2 Months (Secondary Battery) |
| Radio/Wireless Transmission Range | Max. 150M (In Open Space) |
| Ambient Temperature | -10°C to +55°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Diameter x Depth) | To be specified |
| Standard | EN 54-3; EN 54-25 |
| Certification/Approval Authority | IMQ |
| Protection Class | IP21 |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
