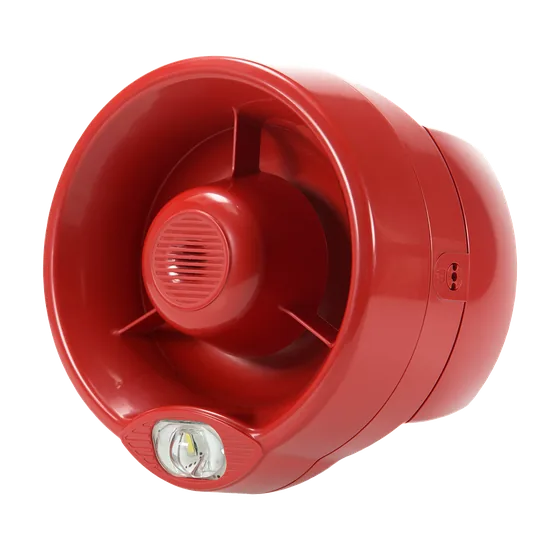

Authorised distributor for CeasefireWireless sounder with a 1 Hz strobe, made from the TI-002256 interface and the TI-002273 sounder with visual indicator, giving up to 100 dB at 1 m and 32 tones. Designed and tested to EN 54-3, EN 54-18 and EN 54-25 and certified by IMQ, with EN 54-23 also listed.
Standards and approvals: EN 54-3, EN 54-23, EN 54-18, EN 54-25, IMQ
| Specification | Details |
|---|---|
| Type | Wireless |
| Model/Product Code | TI-002256+TI-002273 |
| Maximum Sound Output at 24 V DC | 100 dB @ 1M |
| Number of Selectable Tones | 32 |
| Tone Frequency Range | 400 Hz to 2900 Hz |
| Operating Frequency Channels | 7 |
| Maximum Radiated Power | 5 dBm (3mW) |
| Flash Frequency | 1 Hz |
| Operating Frequency Range | 865 MHz |
| Battery Type | Main Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) Secondary Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) |
| Battery Lifespan | Maximum 5 Years (Main Battery) Max. 2 Months (Secondary Battery) |
| Radio/Wireless Transmission Range | Max. 150M (In Open Space) |
| Ambient Temperature | -10°C to +55°C |
| Relative Humidity | 5-95% (non condensing) |
| Dimensions (Diameter x Depth) | To be specified |
| Standard | EN 54-3; EN 54-23; EN 54-18; EN 54-25 |
| Visual Alarm Device Frequency | 0.5 Hz or 1 Hz |
| Certification/Approval Authority | IMQ |
| Protection Class | IP65 |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
The bridge between a Notifier fire alarm control panel and its wireless fire devices, powered by the SLC loop and speaking FlashScan to the panel and a proprietary wireless protocol to the sensors.
Plug-in wireless smoke sensors with a photoelectronic chamber that send a digital smoke density reading through a wireless mesh to the gateway; the FWD-200PH-IN also sends a heat alarm.
The gateway of the Morley addressable wireless fire detection system. It is supplied from the 24V communication line and mounts on a B501AP base.
RF bases from the Morley Wireless range, offered in white or red.
A battery-powered wireless smoke detector from the Agile range, for sites where wiring is not wanted, with a tamper-resist lock on the sensor head.
A wireless multi-criteria detector that combines photoelectric, thermal and infrared sensing for more resistance to false alarms.
