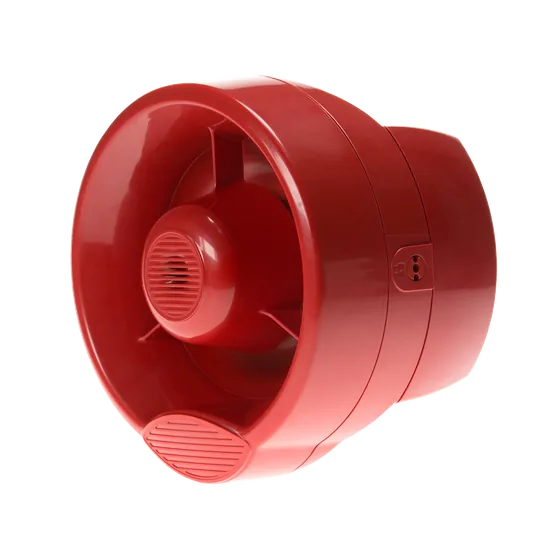

Authorised distributor for CeasefireWireless interface module (TI-002256) that fits inside Pro-Sense modular wall sounders and sounder beacons to make them wireless, listed with the TI-002272 wall sounder for up to 100 dB at 1 m and 32 tones. Designed and tested to EN 54-3, EN 54-18 and EN 54-25 and certified by IMQ.
Standards and approvals: EN 54-18, EN 54-25, IMQ, EN 54-3
| Specification | Wireless-Sounder-(TI-002256-+-TI-002272) | Wireless-Sounder-Interface-Module-(TI-002256) |
|---|---|---|
| Type | Wireless | Wireless |
| Model/Product Code | TI-002256 | TI-002256+TI-002272 |
| Compatible Devices | TI-002272 TI-002273 | |
| Operating Frequency Channels | 7 | 7 |
| Maximum Radiated Power | 5 dBm (3mW) | 5 dBm (3mW) |
| Operating Frequency Range | 865 MHz | 865 MHz |
| Battery Type | Main Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) Secondary Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) | Main Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) Secondary Battery - Lithium Battery CR123A 3V DC (1.2 Ahr) |
| Battery Lifespan | Maximum 5 Years (Main Battery) Max. 2 Months (Secondary Battery) | Maximum 5 Years (Main Battery) Max. 2 Months (Secondary Battery) |
| Radio/Wireless Transmission Range | Max. 150M (In Open Space) | Max. 150M (In Open Space) |
| Ambient Temperature | -25°C to +70°C | -25°C to +70°C |
| Relative Humidity | 5-95% (non condensing) | 95% (non condensing) |
| Dimensions (Length x Width x Height) | To be specified | |
| Standard | EN 54-18; EN 54-25 | EN 54-3; EN 54-18; EN 54-25 |
| Certification/Approval Authority | IMQ | IMQ |
| Protection Class | IP65 | Designed to meet IP65 |
| Mode of Addressing | Electronically Addressed | |
| Product Warranty | 1 Year Warranty | 1 Year Warranty |
| Maximum Sound Output at 24 V DC | 100 dB @ 1M | |
| Number of Selectable Tones | 32 | |
| Tone Frequency Range | 400 Hz to 2900 Hz | |
| Dimensions (Diameter x Depth) | 132mm x 90mm (depth) |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
