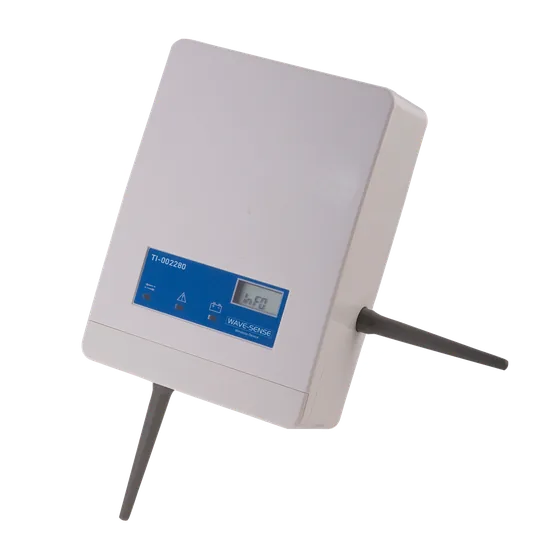

Authorised distributor for CeasefireLoop powered addressable module that links Wave-Sense wireless devices to an addressable fire alarm loop. It handles 32 wireless detectors, call points, modules and sounders and works with up to 7 expander modules.
Standards and approvals: EN 54-17, EN 54-18, EN 54-25, IMQ
| Specification | Details |
|---|---|
| Type | Addressable |
| Model/Product Code | TI-002280 |
| Number of data communication channels | 7 Bi-Directional Channels |
| Number of devices can be administered/ connected | 32 Detectors, Manual Call Points, Modules, Sounders. |
| Operating Frequency Channels | 7 |
| Maximum Radiated Power | 5 dBm (3mW) |
| Status LED Indication | LED Indicator for Communication LED Indicator for Fault LED Indicator for Battery Replacement |
| Short Circuit/Fault Isolator | Built-in dual isolator. |
| Operating Voltage | 18V DC to 40V DC |
| Current Consumption from loop | 20mA (@ 24V DC |
| Operating Frequency Range | 865 MHz |
| Radio/Wireless Transmission Range with Expander Module | Max. 250M (In Open Space) |
| Radio/Wireless Transmission Range with Wireless Field Devices | Max. 150M (In Open Space) |
| Radio signal's modulation type | FSK |
| Ambient Temperature | -10°C to +50°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Width x Height x Depth) | 120mm x 160mm x 51mm |
| Standard | EN 54-17; EN 54-18; EN 54-25 |
| Certification/Approval Authority | IMQ |
| Protection Class | IP 65 |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
