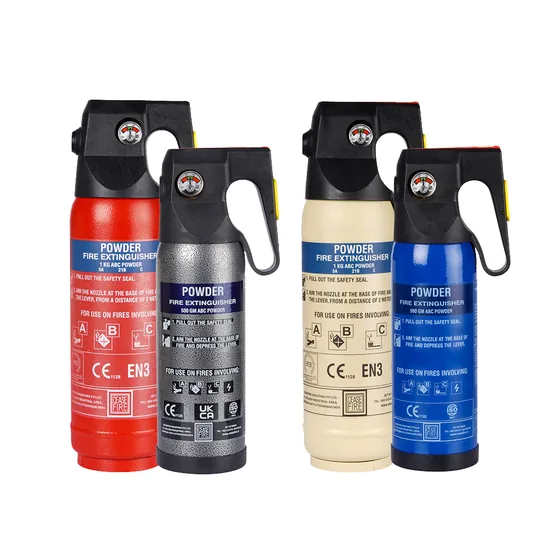

Authorised distributor for CeasefireCompact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
Standards and approvals: EUROCERT, PED, EN3, BIS, LPCB, BSI, IS 15683, KITEMARK, CE, ISO 9001
| Specification | FIRE EXT MAP50 1 kg MS SP RED (SQUEEZE GRIP) | FIRE EXT MAP50 1 kg MS SP RED (GUN HOUSING) | FIRE EXT MAP 90-500GMS MS SP RED TEXTURE | FIRE EXT MAP 90-500GMS MS SP IVORY TEXTURE | FIRE EXT MAP 90-500GMS MS SP BLUE TEXTURE | FIRE EXT MAP 90-500GMS MS SP SILVER TEXTURE | MAP 90 FIRE EXT. - 1 kg IVORY TEXTURE | MAP 90 FIRE EXT. - 1 kg BLUE TEXTURE | MAP 90 FIRE EXT. - 1 kg RED TEXTURE | MAP 90 FIRE EXT. - 1 kg SILVER TEXTURE | FIRE EXT MAP90 1 kg MS SP RED (GUN HOUSING) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT CODES | CF-001137SG | CF-001137 | CF-000224 | CF-000223 | CF-000222 | CF-000225 | CF-001105 | CF-001106 | CF-001185 | CF-001107 | CF-001142 |
| AGENT | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 | ABC POWDER MAP 90 |
| STORED PRESSURE/CARTRIDGE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE |
| CERTIFICATION OR VERIFING BODY | EUROCERT, BIS, LPCB,BSI | EUROCERT, BIS, LPCB, BSI | EUROCERT | EUROCERT | EUROCERT | EUROCERT | EUROCERT | EUROCERT | EUROCERT | EUROCERT | EUROCERT, BIS, LPCB |
| CERTIFICATION TYPE | PED, IS 15683 , EN3 | PED, IS 15683 , EN3 | PED | PED | PED | PED | PED, *EN3 | PED, *EN3 | PED, *EN3 | PED, *EN3 | PED, IS 15683 , EN3 |
| DUAL CERTIFICATE | YES | YES | YES | ||||||||
| BIS MARKING | YES | YES | YES | ||||||||
| *LPCB MARKING | YES | YES | YES | ||||||||
| KITEMARK MARKING | YES | YES | YES | ||||||||
| CE MARKING | YES | YES | YES | ||||||||
| MINIMUM BULK RANGE THROW (AS PER IS 15683) | > 2 METERS | > 2 METERS | > 2 METERS | ||||||||
| GROSS WEIGHT (APPROX) | 1.85 TO 2.10 KG | 1.85 TO 2.10 KG | 1.35 KG | 1.35 KG | 1.35 KG | 1.35 KG | 1.85 TO 2.10 KG | 1.85 TO 2.10 KG | 1.85 TO 2.10 KG | 1.85 TO 2.10 KG | 1.85 TO 2.10 KG |
| NET MASS | 0.95 TO 1.05 KG | 0.95 TO 1.05 KG | 0.475 TO 0.525 KG | 0.475 TO 0.525 KG | 0.475 TO 0.525 KG | 0.475 TO 0.525 KG | 0.95 TO 1.05 KG | 0.95 TO 1.05 KG | 0.95 TO 1.05 KG | 0.95 TO 1.05 KG | 0.95 TO 1.05 KG |
| DISCHARGE MECHANISM | SQUEEZE GRIP | THUMB TRIGGERED | THUMB TRIGGERED | THUMB TRIGGERED | THUMB TRIGGERED | THUMB TRIGGERED | THUMB TRIGGERED | THUMB TRIGGERED | THUMB TRIGGERED | THUMB TRIGGERED | THUMB TRIGGERED |
| APPLICABLE ON FIRES | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE |
| IS 15683 RATINGS | 1A, 34B | 1A, 34B | 1A, 34B | ||||||||
| EN 3 RATINGS | 5A, 34B | 5A, 34B | 5A, 21B | 5A, 21B | 5A, 21B | 5A, 21B | 5A, 21B | ||||
| CAN CONSTRUCTION | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED |
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING |
| EXTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER |
| HELIUM LEAK DETECTION TESTING | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| WARRANTY IN YEARS | 10 | 10 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 10 |
| WORKING PRESSURE | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR |
| HYDROSTATIC TEST PRESSURE | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 30 BAR | 30 BAR | 30 BAR | 30 BAR | 35 BAR |
| DIA. OF SHELL (OD) | 87 MM | 87 MM | 74.5 MM | 74.5 MM | 74.5 MM | 74.5 MM | 86.5 MM | 86.5 MM | 86.5 MM | 86.5 MM | 87 MM |
| HEIGHT OF FIRE EXT. (APPROX) | 383 MM | 327 MM | 265 MM | 265 MM | 265 MM | 265 MM | 325 MM | 325 MM | 325 MM | 325 MM | 327 MM |
| BODY THICKNESS (APPROX) | 1.0 MM | 1.0 MM | 1.2 MM | 1.2 MM | 1.2 MM | 1.2 MM | 1.0 MM | 1.0 MM | 1.0 MM | 1.0 MM | 1.0 MM |
| CYLINDER MATERIAL SPEC. | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) |
| OPERATING TEMPERATURE | -30℃ TO +60℃ | -30℃ TO +60℃ | -30℃ TO +60℃ | -30℃ TO +60℃ | -30℃ TO +60℃ | -30℃ TO +60℃ | -30℃ TO +60℃ | -30℃TO +60℃ | -30℃ TO +60℃ | -30℃ TO +60℃ | -30℃ TO +60℃ |
| CE MARKING/UK CA CE | YES | YES | YES | YES | |||||||
| CE MARKING,UKCA, *LPCB | YES | YES | YES | YES |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
EN approved 1 kg ABC extinguisher for homes and cars with MAP 50 or MAP 90 powder, rated 5A, 34B. It carries LPCB, BSI Kitemark and MED marking and has a 3 m throw.
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
Stored pressure ABC portable with MAP 50 powder in 2, 4, 6 and 9 kg, offered with mild steel or stainless steel bodies. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683 and throws more than 2 m.
Sizes: 1 kg to 9 kg
Stored pressure ABC portable with MAP 90 powder in 1, 2, 4, 6 and 9 kg mild steel bodies, for schools, offices, hospitals and factories. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683.
Sizes: 4 kg, 6 kg, 9 kg, 12 kg
Cartridge operated ABC portable with MAP 50 powder in 4, 6, 9 and 12 kg, pressurised only when the trigger is pressed. It can be refilled on the spot, which avoids sending units back to a factory.
Sizes: 25 kg, 50 kg, 75 kg
Trolley mounted cartridge type ABC extinguisher in 25, 50 and 75 kg with MAP 50 or MAP 90 powder, for large open risks. It is rated 20A, 233B to IS 16018 with a throw above 6 m.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
Sizes: 1 kg
A stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Sizes: 1 kg to 9 kg
A portable ABC dry powder extinguisher with a mild steel cylinder, kept under pressure and ready to discharge, for class A, B and C fires in buildings and vehicles. Offered in 1, 2, 4, 6 and 9 kg; the 4, 6 and 9 kg listings are marked ISI.
