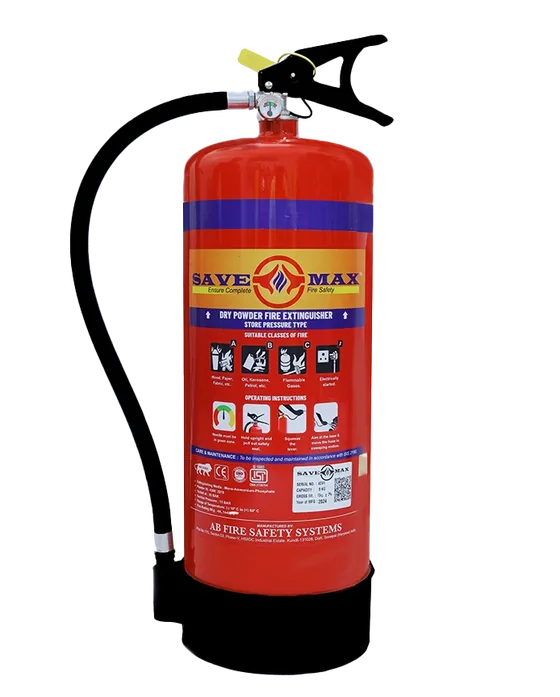

Authorised distributor for SavemaxA stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Standards and approvals: BIS / ISI Marked, CPWD Approved, Euro Certified, IS 2171 : 2024, IS 4308, EN 3, IS 15683
Sizes: 1 kg
| Size | Fire rating |
|---|---|
| 1 kg | 1A, 21B |
| 1 kg | 2 kg | 4 kg | 6 kg | 9 kg |
| Specification | 1 kg | 1 kg | 2 kg | 4 kg | 6 kg | 9 kg |
|---|---|---|
| Agent / Media type | Mono-Ammonium Phosphate (MAP) based ABC Dry Chemical Powder | |
| MAP content (purity) | ≥ 75% as per IS 4308 | |
| Expellant gas | Nitrogen (N₂): Stored Pressure | |
| Operating pressure | 15 bar (at 20°C) | |
| Test pressure | 25 bar | |
| Discharge time | 8 to 10 seconds (approx.) | |
| Effective discharge range | 1.5 to 2.5 metres | |
| Body material | Mild Steel (MS): Seamless Drawn / Welded | |
| Body finish | Powder coated red with blue label tape | |
| Valve type | Squeeze grip valve (ball type) with safety pin & tamper seal | |
| Pressure gauge | Bourdon type: green zone indicator | |
| Gross weight (approx.) | 1.8 to 2.0 Kg | |
| Height (approx.) | 330 to 350 mm | |
| Diameter (approx.) | 100 mm | |
| Fire class suitability | Class A, Class B, Class C | |
| Operating temperature range | -20°C to +60°C | |
| Shelf life | 5 Years from date of manufacture | |
| Refill / recharge interval | Every 12 months or after any use | |
| Standard / compliance | IS 2171 : 2024 (Bureau of Indian Standards) | |
| Certifications | BIS / ISI Marked | CPWD Approved | Euro Certified | BIS/ISI Marked | CPWD Approved | Euro Certified |
| Country of manufacture | India (Sonipat, Haryana) | |
| Brand | Savemax | |
| Available Capacities | 1 Kg | 2 Kg | 4 Kg | 6 Kg | 9 Kg | |
| Body Options | MS (Mild Steel) | Stainless Steel (SS) | |
| Ideal For | Offices, warehouses, schools, hospitals, residential societies, manufacturing units |
Specifications as published by Savemax. Please confirm the exact model with us before ordering.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
Compact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
