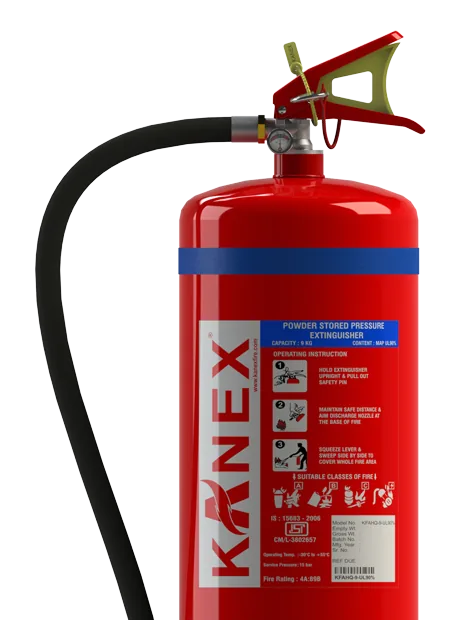

Authorised distributor for KanexPortable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Standards and approvals: CE, IS 15683:2006, BIS, ISI, UL
Sizes: 1 kg to 9 kg
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 1 kg | KFAHQ-1- UL 90% | 1A:34B | 9 Sec. | 2 m | 15 / 18 / 35 bar | 2 kg | 325 mm |
| 2 kg | KFARQ-2- UL 90% | 2A:55B | 14 Sec. | 2 m | 15 / 18 / 35 bar | 3.4 kg | 380 mm |
| 4 kg | KFARQ-4- UL 90% | 4A:144B | 18 Sec. | 3 m | 15 / 18 / 35 bar | 6.6 kg | 490 mm |
| 6 kg | KFARQ-6- UL 90% | 6A:183B | 24 Sec. | 5 m | 15 / 18 / 35 bar | 8.9 kg | 530 mm |
| 9 kg | KFARQ-9- UL 90% | 6A:233B | 31 Sec. | 6 m | 15 / 18 / 35 bar | 13.3 kg | 575 mm |
| Specification | 1 kg | 2 kg | 4 kg | 6 kg | 9 kg |
|---|---|---|---|---|---|
| Design | Nozzle | Nozzle | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle |
| Diameter (Approx.) | 86±10 mm | 106±10 mm | 140±10 mm | 150±10 mm | 180±10 mm |
| Average Discharge | 95% | 95% | 95% | 95% | 95% |
| Operating Temperature | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C |
| Expelling Agent | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) | Nitrogen (UHP Grade) |
| Empty Weight (Approx.) | 1 kg | 2.6 kg | 2.9 kg | 4.3 kg | |
| Shipping Weight (Approx.) | 2.1 kg | 3.6 kg | 7.0 kg | 9.2 kg | 13.6 kg |
| Packing Standard | Inner- 13.75"X4.75"X4.75” Outer (5 in 1)- 16.5"X10"X10” | 2 in 1- 21"X6.75"X14.10” | 2 in 1- 21"X6.75"X14.10” | 1 in 1 - 24.5"X8.0"X8.0" | |
| Mounting Bracket | Vehicle/Wall bracket | Vehicle/Wall bracket | Wall bracket | Wall bracket | Wall bracket |
| Average % Discharge | 95% | 95% | 95% | 95% | 95% |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 2 kg, 4 kg, 6 kg
Stainless steel bodied stored pressure extinguisher with UL listed MAP 90 powder, in 2, 4 and 6 kg. The 2 kg size carries a 3A:55B rating with about 14 seconds discharge.
Sizes: 4 kg, 6 kg, 9 kg
Cartridge operated extinguisher in 4, 6 and 9 kg using UL listed MAP 90 powder pushed out by a CO2 cartridge. Hose and nozzle design with about 15 seconds discharge and 4 m throw.
Sizes: 4 kg, 6 kg, 9 kg
Cartridge operated extinguisher with MAP 50 percent powder in 4, 6 and 9 kg, rated 3A:89B in the 4 kg size. Suited to industrial areas where quick on site recharging matters.
Sizes: 25 kg, 50 kg, 75 kg
Wheeled extinguisher with UL listed MAP 90 powder in 25, 50 and 75 kg, expelled by CO2. The 25 kg size is rated 20A:233B with about 32 seconds discharge and 6 m throw.
Sizes: 25 kg, 50 kg, 75 kg
Wheeled CO2 expelled extinguisher with MAP 50 percent powder in 25, 50 and 75 kg sizes, rated 20A:233B in the 25 kg unit.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
Compact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
Sizes: 1 kg
A stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Sizes: 1 kg to 9 kg
A portable ABC dry powder extinguisher with a mild steel cylinder, kept under pressure and ready to discharge, for class A, B and C fires in buildings and vehicles. Offered in 1, 2, 4, 6 and 9 kg; the 4, 6 and 9 kg listings are marked ISI.
