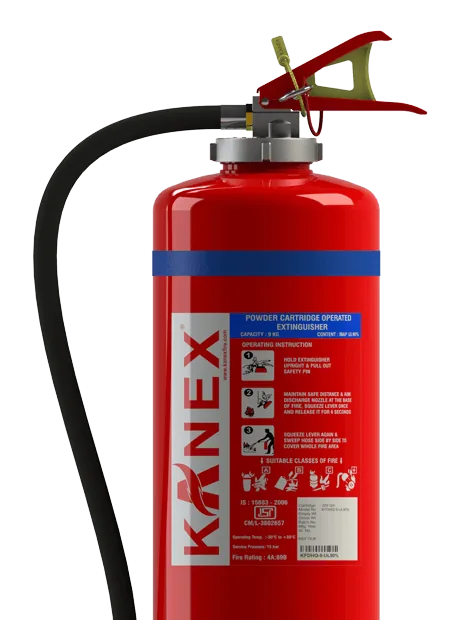

Authorised distributor for KanexCartridge operated extinguisher in 4, 6 and 9 kg using UL listed MAP 90 powder pushed out by a CO2 cartridge. Hose and nozzle design with about 15 seconds discharge and 4 m throw.
Standards and approvals: IS: 4947, IS 15683:2006, BIS, ISI, UL, CE
Sizes: 4 kg, 6 kg, 9 kg
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 4 kg | KFDRQ-4-90% | 4A:144B | 15 Sec. | 4 m | 15 / 17 / 35 bar | 8 kg | 510 mm |
| 4 kg | KFDHQ-4-UL90% | 3A:55B | 15 Sec. | 4 m | 15 / 17 / 35 bar | 8 kg | 510 mm |
| 6 kg | KFDRQ-6-90% | 6A:183B | 20 Sec. | 4.5 m | 15 / 17 / 35 bar | 10.3 kg | 540 mm |
| 6 kg | KFDHQ-6-UL90% | 4A:144B | 20 Sec. | 4.5 m | 15 / 17 / 35 bar | 10.3 kg | 540 mm |
| 9 kg | KFDRQ-9-90% | 6A:233B | 30 Sec. | 5 m | 15 / 17 / 35 bar | 15.3 kg | 585 mm |
| 9 kg | KFDHQ-9-UL90% | 6A:183B | 30 Sec. | 5 m | 15 / 17 / 35 bar | 15.3 kg | 585 mm |
| Specification | 4 kg KFDRQ-4-90% | 4 kg KFDHQ-4-UL90% | 6 kg KFDRQ-6-90% | 6 kg KFDHQ-6-UL90% | 9 kg KFDRQ-9-90% | 9 kg KFDHQ-9-UL90% |
|---|---|---|---|---|---|---|
| Design | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle | Hose & Nozzle |
| Diameter (Approx.) | 140±10 mm | 140±10 mm | 150±10 mm | 150±10 mm | 180±10 mm | 180±10 mm |
| Average Discharge | 95% | 95% | 95% | |||
| Operating Temperature | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C |
| Expelling Agent | Co2 gas | Co2 gas | Co2 gas | Co2 gas | Co2 gas | Co2 gas |
| Co2 gas cartridge | 120 gm | 120 gm | 120 gm | 120 gm | 200 gm | 200 gm |
| Empty Weight (Approx.) | 4 kg | 4 kg | 4.3 kg | 4.3 kg | 6.3 kg | 6.3 kg |
| Shipping Weight (Approx.) | 8.3 kg | 8.3 kg | 10.6 kg | 10.6 kg | 15.8 kg | 15.8 kg |
| Packing Standard | 2 in 1- 21"X6.75"X14.10” | 2 in 1- 21"X6.75"X14.10” | 2 in 1- 22.5"X6.75"X14.10” | 2 in 1- 22.5"X6.75"X14.10” | 2 in 1 - 24.5"X15.3.0"X8.0" | 2 in 1 - 24.5"X15.3.0"X8.0" |
| Mounting Bracket | Wall bracket | Wall bracket | Wall bracket | Wall bracket | Wall bracket | Wall bracket |
| Average % Discharge | 95% | 95% | 95% |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 2 kg, 4 kg, 6 kg
Stainless steel bodied stored pressure extinguisher with UL listed MAP 90 powder, in 2, 4 and 6 kg. The 2 kg size carries a 3A:55B rating with about 14 seconds discharge.
Sizes: 4 kg, 6 kg, 9 kg
Cartridge operated extinguisher with MAP 50 percent powder in 4, 6 and 9 kg, rated 3A:89B in the 4 kg size. Suited to industrial areas where quick on site recharging matters.
Sizes: 25 kg, 50 kg, 75 kg
Wheeled extinguisher with UL listed MAP 90 powder in 25, 50 and 75 kg, expelled by CO2. The 25 kg size is rated 20A:233B with about 32 seconds discharge and 6 m throw.
Sizes: 25 kg, 50 kg, 75 kg
Wheeled CO2 expelled extinguisher with MAP 50 percent powder in 25, 50 and 75 kg sizes, rated 20A:233B in the 25 kg unit.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
Compact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
Sizes: 1 kg
A stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Sizes: 1 kg to 9 kg
A portable ABC dry powder extinguisher with a mild steel cylinder, kept under pressure and ready to discharge, for class A, B and C fires in buildings and vehicles. Offered in 1, 2, 4, 6 and 9 kg; the 4, 6 and 9 kg listings are marked ISI.
