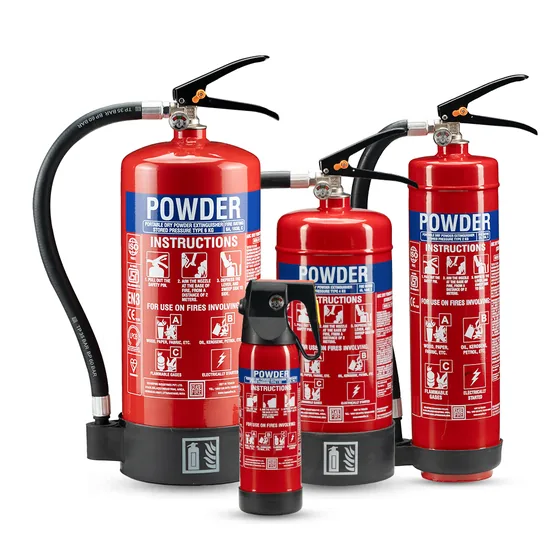

Authorised distributor for CeasefireStored pressure ABC portable with MAP 50 powder in 2, 4, 6 and 9 kg, offered with mild steel or stainless steel bodies. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683 and throws more than 2 m.
Standards and approvals: EUROCERT, BIS, LPCB, BSI, PED, IS 15683, EN3, KITEMARK, CE, BSI Kitemark
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
| Specification | 2 kg | 4 kg | 6 kg | 9 kg | FIRE EXT MAP50 2 kg MS SP RED (SQUEEZE GRIP) | FIRE EXT MAP50 2 kg MS SP RED (GUN HOUSING) | FIRE EXT MAP50 4 kg MS SP RED | FIRE EXT MAP50 6 kg MS SP RED | FIRE EXT MAP50 9 kg MS SP RED | FIRE EXT MAP50 2 kg SS SP RED | FIRE EXT MAP50 4 kg SS SP RED | FIRE EXT MAP50 6 kg SS SP RED | FIRE EXT MAP50 9 kg SS SP RED |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IS 15683 | 2A, 70B | 4A, 144B | 6A, 183B | 6A, 233B | |||||||||
| EN 3 | 8A, 70B | 21A, 144B | 27A, 183B | 43A, 233B | |||||||||
| PRODUCT CODES | CF-001138SG | CF-001138 | CF-001139 | CF-001140 | CF-001141 | CF-001544 | CF-001545 | CF-001546 | CF-001547 | ||||
| AGENT | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ABC POWDER MAP 50 | ||||
| STORED PRESSURE/CARTRIDGE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | ||||
| CERTIFICATION OR VERIFING BODY | EUROCERT, BIS, LPCB, BSI | EUROCERT, BIS, LPCB ,BSI | EUROCERT, BIS, LPCB, BSI | EUROCERT, BIS, LPCB, BSI | EUROCERT, BIS, LPCB, BSI | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | ||||
| CERTIFICATION TYPE | PED, IS 15683 , EN3 | PED, IS 15683 , EN3 | PED, IS 15683 , EN3 | PED, IS 15683 , EN3 | PED, IS 15683 , EN3 | PED, IS 15683 | PED, IS 15683 | PED, IS 15683 | PED, IS 15683 | ||||
| DUAL CERTIFICATE | YES | YES | YES | YES | YES | ||||||||
| BIS MARKING | YES | YES | YES | YES | YES | YES | YES | YES | YES | ||||
| *LPCB MARKING | YES | YES | YES | YES | YES | ||||||||
| KITEMARK MARKING | YES | YES | YES | YES | YES | ||||||||
| CE MARKING | YES | YES | YES | YES | YES | YES | YES | YES | YES | ||||
| MINIMUM BULK RANGE THROW (AS PER IS 15683) | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | > 2 METERS | ||||
| GROSS WEIGHT | 3.30 TO 3.50 KG | 3.30 TO 3.50 KG | 6.20 TO 6.50 KG | 9.0 TO 9.35 KG | 13.20 TO 13.60 KG | ||||||||
| NET MASS | 1.94 TO 2.06 KG | 1.94 TO 2.06 KG | 3.92 TO 4.08 KG | 5.88 TO 6.12 KG | 8.82 TO 9.18 KG | ||||||||
| DISCHARGE MECHANISM | SQUEEZE GRIP | THUMB TRIGGERED | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | ||||
| APPLICABLE ON FIRES | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | A, B, C, & ELECTRICAL STARTED FIRE | ||||
| IS 15683 RATINGS | 2A, 70B | 2A, 70B | 4A, 144B | 6A, 183B | 6A, 233B | 2A, 70B | 4A, 144B | 6A, 183B | 6A, 233B | ||||
| EN 3 RATINGS | 8A, 70B | 8A, 70B | 21A, 144B | 27A, 183B | 43A, 233B | NOT APPLICABLE | NOT APPLICABLE | NOT APPLICABLE | NOT APPLICABLE | ||||
| CAN CONSTRUCTION | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | DEEP DRAWN & MIG WELDED | ||||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | ||||
| EXTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | ||||
| HELIUM LEAK DETECTION TESTING | YES | YES | YES | YES | YES | YES | YES | YES | YES | ||||
| WARRANTY IN YEARS | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||||
| WORKING PRESSURE | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | 15 BAR | ||||
| HYDROSTATIC TEST PRESSURE | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | 35 BAR | ||||
| APPROX DIA. OF SHELL (OD) | 108 MM | 108 MM | 140 MM | 160 MM | 175 MM | 108 MM | 140 MM | 160 MM | 175 MM | ||||
| APPROX. HEIGHT OF FIRE EXT. | 368 MM | 423 MM | 445 MM | 490 MM | 620 MM | 423 MM | 445 MM | 490 MM | 620 MM | ||||
| BODY THICKNESS | 1.4 MM | 1.4 MM | 1.2MM | 1.4 MM | 1.4 MM | ||||||||
| CYLINDER MATERIAL SPEC. | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | STEEL CR2(DC01) | SS 304 (1.4301) | SS 304 (1.4301) | SS 304 (1.4301) | SS 304 (1.4301) | ||||
| OPERATING TEMPERATURE | -30°C TO +60°C | -30°C TO +60°C | -30°C TO +60°C | -30°C TO +60°C | -30°C TO +60°C | -30°C TO +60°C | -30°C TO +60°C | -30°C TO +60°C | -30°C TO +60°C | ||||
| GROSS WEIGHT (APPROX) | 4.4 TO 4.7 KG | 6.80 TO 7.00 KG | 10.30 TO 10.90 KG | 14.40 TO 14.80 KG | |||||||||
| APPROX NET MASS | 1.96 TO 2.04 KG | 3.92 TO 4.08 KG | 5.88 TO 6.12 KG | 8.82 TO 9.18 KG | |||||||||
| BODY THICKNESS (APPROX) | 1.5 MM | 1.5 MM | 1.5 MM | 1.5 MM |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
Compact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
EN approved 1 kg ABC extinguisher for homes and cars with MAP 50 or MAP 90 powder, rated 5A, 34B. It carries LPCB, BSI Kitemark and MED marking and has a 3 m throw.
Sizes: 1 kg to 9 kg
Stored pressure ABC portable with MAP 90 powder in 1, 2, 4, 6 and 9 kg mild steel bodies, for schools, offices, hospitals and factories. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683.
Sizes: 4 kg, 6 kg, 9 kg, 12 kg
Cartridge operated ABC portable with MAP 50 powder in 4, 6, 9 and 12 kg, pressurised only when the trigger is pressed. It can be refilled on the spot, which avoids sending units back to a factory.
Sizes: 25 kg, 50 kg, 75 kg
Trolley mounted cartridge type ABC extinguisher in 25, 50 and 75 kg with MAP 50 or MAP 90 powder, for large open risks. It is rated 20A, 233B to IS 16018 with a throw above 6 m.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
Sizes: 1 kg
A stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Sizes: 1 kg to 9 kg
A portable ABC dry powder extinguisher with a mild steel cylinder, kept under pressure and ready to discharge, for class A, B and C fires in buildings and vehicles. Offered in 1, 2, 4, 6 and 9 kg; the 4, 6 and 9 kg listings are marked ISI.
