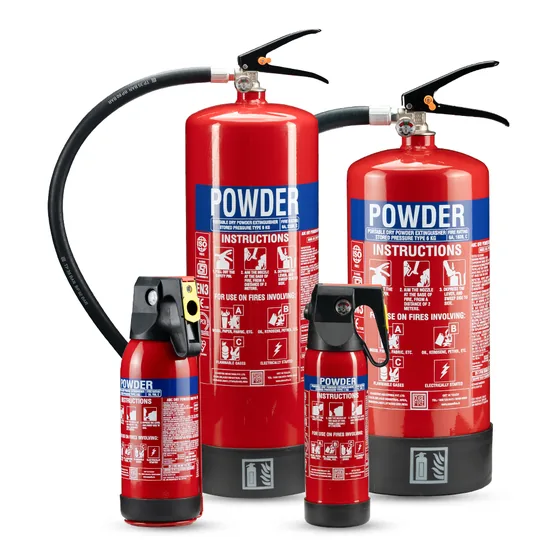

Authorised distributor for CeasefireStored pressure ABC portable with MAP 90 powder in 1, 2, 4, 6 and 9 kg mild steel bodies, for schools, offices, hospitals and factories. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683.
Standards and approvals: ISO 9001, IS-15683, PED, EN3, BIS, LPCB, BSI Kitemark
Sizes: 1 kg to 9 kg
| Specification | 1 kg | 2 kg | 4 kg | 6 kg | 9 kg | Fire Ext MAP90 1 kg MS SP Red (Gun Housing) | Fire Ext MAP90 2 kg MS SP Red (Gun Housing) | Fire Ext MAP90 4 kg MS SP Red | Fire Ext MAP90 6 kg MS SP Red | Fire Ext MAP90 9 kg MS SP Red |
|---|---|---|---|---|---|---|---|---|---|---|
| IS 15683 | 1A, 34B | 3A, 70B | 4A, 144B | 6A, 183B | 6A, 233B | |||||
| EN 3 | 5A, 21B | 13A, 55B | 21A, 144B | 27A, 183B | 43A, 233B | |||||
| Product Code | CF-001142 | CF-001143 | CF-001144 | CF-001145 | CF-001146 | |||||
| Capacity of Agent | 1 (Kg) | 2 (Kg) | 4 (Kg) | 6 (Kg) | 9 (Kg) | |||||
| Filling tolerance by Mass | ± 2 (%) | ± 2 (%) | ± 2 (%) | ± 2 (%) | ± 2 (%) | |||||
| Agent | ABC Powder MAP 90 | ABC Powder MAP 90 | ABC Powder MAP 90 | ABC Powder MAP 90 | ABC Powder MAP 90 | |||||
| Certification Standard | ISO 9001, IS-15683, PED, *EN3 | ISO 9001, IS-15683, PED, *EN3 | ISO 9001, IS-15683, PED, *EN3 | ISO 9001, IS-15683, PED, *EN3 | ISO 9001, IS-15683, PED, *EN3 | |||||
| Valve Material of Construction (MOC) | Brass | Brass | Brass | Brass | Brass | |||||
| Valve Construction | Forging and machining | Forging and machining | Forging and machining | Forging and machining | Forging and machining | |||||
| Pressure Relief Valve (PRV) | No | No | Yes | Yes | Yes | |||||
| Non Return Valve (NRV) | No | No | Yes | Yes | Yes | |||||
| Shell Material of Construction (MOC) | Steel CR2 (Dc01) | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) | |||||
| Shell Construction | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | Deep Drawn & MIG Welded | |||||
| Min. Wall Thickness | 1 (mm) | 1.4 (mm) | 1.2 (mm) | 1.4 (mm) | 1.4 (mm) | |||||
| Diameter of Shell (approx.) | 86.5 (mm) | 108 (mm) | 140 (mm) | 160 (mm) | 175 (mm) | |||||
| Total Height (approx.) | 327 (mm) | 368 (mm) | 445 (mm) | 490 (mm) | 620 (mm) | |||||
| Test Pressure | 35 (Bar) | 35 (Bar) | 35 (Bar) | 35 (Bar) | 35 (Bar) | |||||
| Anti-Corrosive Treatment External | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | |||||
| Service Pressure | 15 (Bar) | 15 (Bar) | 15 (Bar) | 15 (Bar) | 15 (Bar) | |||||
| Type of Operating Mechanism | Thumb Triggered | Thumb Triggered | Squeeze Grip | Squeeze Grip | Squeeze Grip | |||||
| Type of Pressure Gauge | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | |||||
| MOC and Length of Hose | Direct Nozzle (mm) | Direct Nozzle (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 650 mm (mm) | |||||
| Minimum Throw Distance (BRD as per IS-15683) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | |||||
| Min. Discharge Time (as per IS-15683) | 8 (Sec.) | 9 (Sec.) | 15 (Sec.) | 15 (Sec.) | 15 (Sec.) | |||||
| Applicable to Type of Fire | Class A, B, C & Electrical Started Fire | Class A, B, C & Electrical Started Fire | Class A, B, C & Electrical Started Fire | Class A, B, C & Electrical Started Fire | Class A, B, C & Electrical Started Fire | |||||
| Fire Rating - IS 15683 Ratings | 1A | 34B | 3A | 70B | 4A | 144B | 6A | 183B | 6A | 233B | |||||
| Fire Rating - EN-3 Rating | 5A | 21B | 13A | 55B | 21A | 144B | 27A | 183B | 43A | 233B | |||||
| Operating Temperature Range | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | |||||
| Extinguisher Label | Screen printed | Screen printed | Screen printed | Screen printed | Screen printed | |||||
| Glow in the Dark Fire Extinguisher Locator | No | No | Yes | Yes | Yes | |||||
| Green Packaging (Environment Friendly) | Yes | Yes | Yes | Yes | Yes | |||||
| Gross Weight** | 1.85 to 2.10 (Kg) | 3.30 to 3.50 (Kg) | 6.20 to 6.50 (Kg) | 9.0 to 9.35 (Kg) | 13.20 to 13.60 (Kg) | |||||
| Product Warranty*** | 10 (Year) | 10 (Year) | 10 (Year) | 10 (Year) | 10 (Year) | |||||
| Mounting Bracket | Wire Bracket | Wire Bracket | L Bracket with J hanger | L Bracket with J hanger | L Bracket with J hanger |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
Compact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
EN approved 1 kg ABC extinguisher for homes and cars with MAP 50 or MAP 90 powder, rated 5A, 34B. It carries LPCB, BSI Kitemark and MED marking and has a 3 m throw.
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
Stored pressure ABC portable with MAP 50 powder in 2, 4, 6 and 9 kg, offered with mild steel or stainless steel bodies. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683 and throws more than 2 m.
Sizes: 4 kg, 6 kg, 9 kg, 12 kg
Cartridge operated ABC portable with MAP 50 powder in 4, 6, 9 and 12 kg, pressurised only when the trigger is pressed. It can be refilled on the spot, which avoids sending units back to a factory.
Sizes: 25 kg, 50 kg, 75 kg
Trolley mounted cartridge type ABC extinguisher in 25, 50 and 75 kg with MAP 50 or MAP 90 powder, for large open risks. It is rated 20A, 233B to IS 16018 with a throw above 6 m.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
Sizes: 1 kg
A stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Sizes: 1 kg to 9 kg
A portable ABC dry powder extinguisher with a mild steel cylinder, kept under pressure and ready to discharge, for class A, B and C fires in buildings and vehicles. Offered in 1, 2, 4, 6 and 9 kg; the 4, 6 and 9 kg listings are marked ISI.
