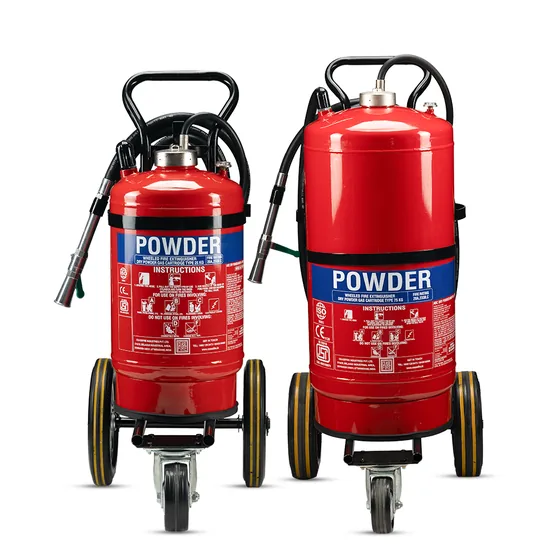

Authorised distributor for CeasefireTrolley mounted cartridge type ABC extinguisher in 25, 50 and 75 kg with MAP 50 or MAP 90 powder, for large open risks. It is rated 20A, 233B to IS 16018 with a throw above 6 m.
Standards and approvals: IS 16018, EUROCERT, BIS, PED, CE, LPCB
Sizes: 25 kg, 50 kg, 75 kg
| Specification | 25 kg | 50 kg | FIRE EXT MAP50 25 kg MS CT RED | FIRE EXT MAP50 50 kg MS CT RED | FIRE EXT MAP50 75 kg MS CT RED | 75 kg | FIRE EXT MAP90 25 kg MS CT RED | FIRE EXT MAP90 50 kg MS CT RED | FIRE EXT MAP90 75 kg MS CT RED |
|---|---|---|---|---|---|---|---|---|---|
| MAP-50 | 20A, 233B | 20A, 233B | 20A, 233B | ||||||
| MAP-90 | 20A, 233B | 20A, 233B | 20A, 233B | ||||||
| PRODUCT CODE | CF-001169 | CF-001170 | CF-001192 | CF-000019 | CF-000020 | CF-000021 | |||
| AGENT | MAP50 | MAP50 | MAP50 | MAP90 | MAP90 | MAP90 | |||
| MINIMUM BULK RANGE THROW (AS PER IS 16018) | >6 METERS | >6 METERS | >6 METERS | >6 METERS | >6 METERS | >6 METERS | |||
| CERTIFICATION OR VERIFING BODY | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | |||
| CERTIFICATION TYPE | PED, IS 16018 | PED, IS 16018 | PED, IS 16018 | PED, IS 16018 | PED, IS 16018 | PED, IS 16018 | |||
| BIS MARKING | YES | YES | YES | YES | YES | YES | |||
| CE MARKING | YES | YES | YES | YES | YES | YES | |||
| PROPELLANT (CARTRIDGE CAPACITY & WEIGHT) | 1.5 LTR 600 GM CO2 | 3 LTR 1300 GM CO2 | 3 LTR 1300 GM CO2 | 1.5 LTR 600 GM CO2 | 3 LTR 1300 GM CO2 | 3 LTR 1300 GM CO2 | |||
| GROSS WEIGHT | 66.00 TO 70.00 KG | 117.00 TO 120.00 KG | 151.00 TO 155.00 KG | 66.00 TO 70.00 KG | 117.00 TO 120.00 KG | 151.00 TO 155.00 KG | |||
| NET CONTENTS | 24.50 TO 25.50 KG | 49.00 TO 51.00 KG | 73.50 TO 76.50 KG | 24.50 TO 25.50 KG | 49.00 TO 51.00 KG | 73.50 TO 76.50 KG | |||
| APPROX. HEIGHT OF FIRE EXT. | 990 MM | 1200 MM | 1200 MM | 990 MM | 1200 MM | 1200 MM | |||
| DISCHARGE MECHANISM | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | |||
| APPLICABLE ON FIRES | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | |||
| IS 16018 RATINGS | 20A, 233B | 20A, 233B | 20A, 233B | 20A, 233B | 20A, 233B | 20A, 233B | |||
| CAN CONSTRUCTION | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | |||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | |||
| EXTERNAL COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | |||
| WARRANTY IN YEARS | 6 | 6 | 6 | ||||||
| WORKING PRESSURE | 15BAR | 15BAR | 15BAR | 15BAR | 15BAR | 15BAR | |||
| DIA. OF SHELL (OD) | 300.0 MM | 400.0 MM | 400.0 MM | 300.0 MM | 400.0 MM | 400.0 MM | |||
| OPERATING TEMPERATURE | -30°C TO +55° C | -30°C TO +55° C | -30°C TO +55° C | -30°C TO +55° C | -30°C TO +55° C | -30°C TO +55° C | |||
| HYDROSTATIC TEST PRESSURE | 37.5 BAR | 37.5 BAR | 37.5BAR | 37.5BAR | 37.5BAR | 37.5BAR | |||
| CYLINDER MATERIAL SPEC. | STEEL CR2(DC01) | STEEL HR3(DD13) | STEEL HR3(DD13) | STEEL CR2(DC01) | STEEL HR3(DD13) | STEEL HR3(DD13) | |||
| BODY THICKNESS | 3.0 MM | 3.5 MM | 3.5 MM | 3.0 MM | 3.5 MM | 3.5 MM | |||
| WARRANTY IN YEAR | 6 | 6 | 6 |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
Compact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
EN approved 1 kg ABC extinguisher for homes and cars with MAP 50 or MAP 90 powder, rated 5A, 34B. It carries LPCB, BSI Kitemark and MED marking and has a 3 m throw.
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
Stored pressure ABC portable with MAP 50 powder in 2, 4, 6 and 9 kg, offered with mild steel or stainless steel bodies. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683 and throws more than 2 m.
Sizes: 1 kg to 9 kg
Stored pressure ABC portable with MAP 90 powder in 1, 2, 4, 6 and 9 kg mild steel bodies, for schools, offices, hospitals and factories. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683.
Sizes: 4 kg, 6 kg, 9 kg, 12 kg
Cartridge operated ABC portable with MAP 50 powder in 4, 6, 9 and 12 kg, pressurised only when the trigger is pressed. It can be refilled on the spot, which avoids sending units back to a factory.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
Sizes: 1 kg
A stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Sizes: 1 kg to 9 kg
A portable ABC dry powder extinguisher with a mild steel cylinder, kept under pressure and ready to discharge, for class A, B and C fires in buildings and vehicles. Offered in 1, 2, 4, 6 and 9 kg; the 4, 6 and 9 kg listings are marked ISI.
