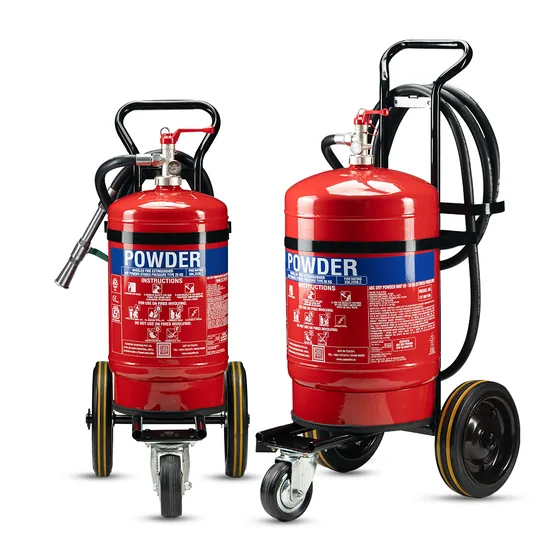

Authorised distributor for CeasefireTrolley mounted stored pressure ABC extinguisher in 25, 50 and 75 kg with MAP 50 or MAP 90 powder, activated by turning a valve. It is rated 20A, 233B to IS 16018, with a bulk range discharge above 6 m.
Standards and approvals: IS-16018, EUROCERT, BIS, PED, CE
Sizes: 25 kg, 50 kg, 75 kg
| Specification | 25 kg | 50 kg | FIRE EXT MAP50 25 kg MS SP RED | FIRE EXT MAP50 50 kg MS SP RED | FIRE EXT MAP50 75 kg MS SP RED | 75 kg | FIRE EXT MAP90 25 kg MS SP RED | FIRE EXT MAP90 50 kg MS SP RED | FIRE EXT MAP90 75 kg MS SP RED |
|---|---|---|---|---|---|---|---|---|---|
| MAP-50 | 20A, 233B | 20A, 233B | 20A, 233B | ||||||
| MAP-90 | 20A, 233B | 20A, 233B | 20A, 233B | ||||||
| PRODUCT CODE | CF-001167 | CF-001168 | CF-001191 | CF-000650 | CF-000651 | CF-000652 | |||
| AGENT | MAP50 | MAP50 | MAP50 | MAP90 | MAP90 | MAP90 | |||
| BULK RANGE DISCHARGE (BRD AS PER IS-16018) | > 6 METERS | > 6 METERS | > 6 METERS | > 6 METERS | > 6 METERS | > 6 METERS | |||
| CERTIFICATION OR VERIFING BODY | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | |||
| CERTIFICATION TYPE | PED, IS 16018 | PED, IS 16018 | PED, IS 16018 | PED, IS 16018 | PED, IS 16018 | PED, IS 16018 | |||
| BIS MARKING | YES | YES | YES | YES | YES | YES | |||
| CE MARKING | YES | YES | YES | YES | YES | YES | |||
| GROSS WEIGHT | 59.00 TO 63.00 KG | 107.00 TO 110.00 KG | 140.00 TO 144.00 KG | 60.00 TO 62.00 KG | 107.00 TO 110.00 KG | 140.00 TO 144.00 KG | |||
| NET CONTENTS | 24.50 TO 25.50 KG | 49.00 TO 51.00 KG | 73.50 TO 76.50 KG | 24.50 TO 25.50 KG | 49.00 TO 51.00 KG | 73.50 TO 76.50 KG | |||
| APPROX. HEIGHT OF FIRE EXT. | 990 MM | 1200 MM | 1200 MM | 990 MM | 1200 MM | 1200 MM | |||
| DISCHARGE MECHANISM | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | OPERATING LEVER (BALL VALVE) | |||
| APPLICABLE ON FIRES | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | CLASS A, B, C, & ELECTRICALLY STARTED FIRE | |||
| IS 16018 RATINGS | 20A, 233B | 20A, 233B | 20A, 233B | 20A, 233B | 20A, 233B | 20A, 233B | |||
| CAN CONSTRUCTION | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | |||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | |||
| EXTERNAL COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | |||
| WARRANTY IN YEAR | 10 | 10 | 10 | 10 | 10 | 10 | |||
| WORKING PRESSURE | 15BAR | 15BAR | 15BAR | 15BAR | 15BAR | 15BAR | |||
| DIA. OF SHELL (OD) | 300.0 MM | 400.0 MM | 400.0 MM | 300.0 MM | 400.0 MM | 400.0 MM | |||
| OPERATING TEMPERATURE | -30°C TO +55°C | -30°C TO +55°C | -30°C TO +55°C | -30°C TO +55°C°C | -30°C TO +55°C | -30°C TO +55°C | |||
| HYDROSTATIC TEST PRESSURE | 37.5 BAR | 37.5 BAR | 37.5BAR | 37.5BAR | 37.5BAR | 37.5BAR | |||
| CYLINDER MATERIAL SPEC. | STEEL CR2(DC01) | STEEL HR3(DD13) | STEEL HR3(DD13) | STEEL CR2(DC01) | STEEL HR3(DD13) | STEEL HR3(DD13) | |||
| BODY THICKNESS (APPROX) | 3.0 MM | 3.5 MM | 3.5 MM | ||||||
| BODY THICKNESS | 3.0 MM | 3.5 MM | 3.5 MM |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Designer finish ABC extinguisher for homes and cars in 500 g and 1 kg, filled with MAP 90 powder and operated by a thumb trigger. It is made to IS 15683 with PED certification and has a minimum throw of 3 m.
Compact stored pressure ABC extinguisher for homes and cars in 500 g and 1 kg, with MAP 90 or MAP 50 powder. It is light and easy to handle, and works on Class A, B, C and electrically started fires.
EN approved 1 kg ABC extinguisher for homes and cars with MAP 50 or MAP 90 powder, rated 5A, 34B. It carries LPCB, BSI Kitemark and MED marking and has a 3 m throw.
Sizes: 2 kg, 4 kg, 6 kg, 9 kg
Stored pressure ABC portable with MAP 50 powder in 2, 4, 6 and 9 kg, offered with mild steel or stainless steel bodies. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683 and throws more than 2 m.
Sizes: 1 kg to 9 kg
Stored pressure ABC portable with MAP 90 powder in 1, 2, 4, 6 and 9 kg mild steel bodies, for schools, offices, hospitals and factories. It is BIS, LPCB, BSI Kitemark and PED certified to IS 15683.
Sizes: 4 kg, 6 kg, 9 kg, 12 kg
Cartridge operated ABC portable with MAP 50 powder in 4, 6, 9 and 12 kg, pressurised only when the trigger is pressed. It can be refilled on the spot, which avoids sending units back to a factory.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher filled with UL listed MAP 90 percent mono ammonium phosphate powder, available from 1 kg to 9 kg. The 1 kg size is rated 1A:34B with about 9 seconds discharge and 2 m throw.
Sizes: 1 kg to 9 kg
Regular quality (RQ) portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg. Kanex lists the 1 kg size with MAP 40 powder, rated 1A:21B, and the 2 to 9 kg sizes with MAP 50 powder.
Sizes: 1 kg to 9 kg
Portable stored pressure extinguisher in 1, 2, 4, 6 and 9 kg, filled with silicon coated MAP 50 or MAP 90 powder as required and pressurised with dry nitrogen. The 1 kg size is listed at 1A:21B with a minimum effective discharge time of 8 seconds.
Sizes: 1 kg, 2 kg
Sleek, compact stored pressure extinguisher in 1 and 2 kg with MAP 90 ABC powder, designed to suit the look of the premises it protects. The 1 kg size is rated 1A:34B with a minimum effective discharge time of 9 seconds.
Sizes: 1 kg
A stored pressure extinguisher charged with mono-ammonium phosphate based ABC dry chemical powder under nitrogen, made to IS 2171 : 2024 in 1, 2, 4, 6 and 9 Kg sizes. Bodies are available in mild steel or stainless steel depending on the model.
Sizes: 1 kg to 9 kg
A portable ABC dry powder extinguisher with a mild steel cylinder, kept under pressure and ready to discharge, for class A, B and C fires in buildings and vehicles. Offered in 1, 2, 4, 6 and 9 kg; the 4, 6 and 9 kg listings are marked ISI.
