Apollo XP95 Flame Detector (IR3)
A loop powered addressable flame detector for areas where open flaming fires may be expected, sensing the low frequency flicker of infra-red radiation from flames. It works with the Discovery and XP95 protocols.

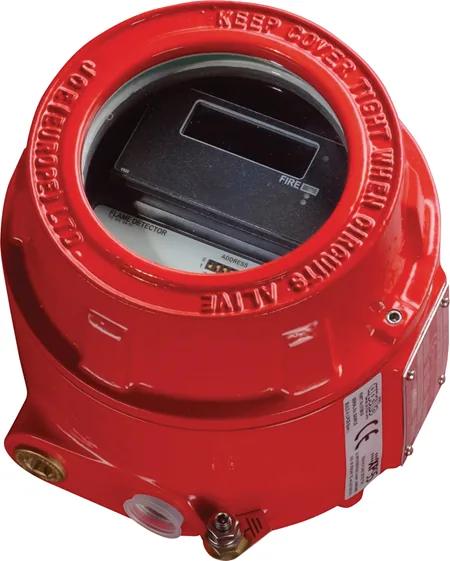

Authorised distributor for ApolloApollo Conventional Exd Flame Detector (IR3), Flameproof
A flameproof IR3 flame detector for hazardous indoor and outdoor areas, sensing the low frequency flicker of infra-red radiation from flames even through oil, dust, water vapour or ice. BASEEFA has certified it to EN 60079-0, EN 60079-1 and EN 61241-1.
- ATEX and IECEx certified, Ex d IIC T4, for Zones 1, 21, 2 and 22
- Selectable outputs: conventional two-wire, 4 to 20 mA, latching or non-latching, fire and fault relays, pre-alarm
- Class 1 sensitivity to EN 54-10
- Selectable response speed and optical self test
- BASEEFA, IECEx, CPR and LPCB approvals
- Red finish, 3 year warranty
Standards and approvals: BASEEFA, CPR, LPCB, IECEx
Specifications
Specifications
| Specification | 55000-062APO |
|---|---|
| Warranty | 3 year |
| Applications | Hazardous areas |
| Colour | Red |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
More Apollo Flame & Specialist Detection
Apollo XP95 Flame Detector (IR2)
An addressable flame detector with two sensors reading different IR wavelengths, so it can tell flames from other sources of radiation. It has a 90° field of view and covers up to 40 m.
Apollo XP95 Exd Flame Detector (IR3), Flameproof
A flameproof version of the XP95 IR3 flame detector for hazardous areas, sensing the flicker of infra-red radiation from open flaming fires. It is loop powered and works with the Discovery and XP95 protocols.
Apollo XP95 UV Flame Detector, Base Mounted
A compact UV flame detector that fits into a Discovery or XP95 base, for enclosed indoor areas where open fires may be expected. Its single UV sensor with a narrow spectral response reacts quickly to flames up to 25 m away, including steady flames with no flicker.
Apollo XP95 UV/IR2 Flame Detector, Base Mounted
A base mounted flame detector with one UV and two IR sensors, for open indoor areas such as aircraft hangars, generator rooms and paint works where open flaming fires may be expected. It fits into a Discovery or XP95 base.
Apollo Conventional Flame Detector (IR3)
A conventional flame detector for harsh indoor environments, with three sensors reading different IR wavelengths to separate flames from spurious radiation. It meets EN 54-10 Class 1, detecting a 0.1 m2 fire at 25 m.
