Apollo XP95 Flame Detector (IR3)
A loop powered addressable flame detector for areas where open flaming fires may be expected, sensing the low frequency flicker of infra-red radiation from flames. It works with the Discovery and XP95 protocols.

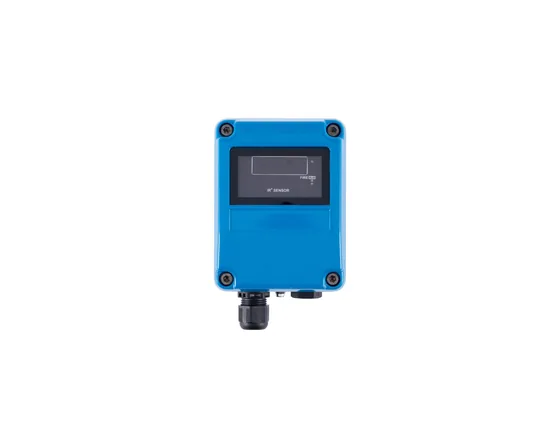

Authorised distributor for ApolloApollo Conventional Flame Detector (IR3)
A conventional flame detector for harsh indoor environments, with three sensors reading different IR wavelengths to separate flames from spurious radiation. It meets EN 54-10 Class 1, detecting a 0.1 m2 fire at 25 m.
- Class 1 sensitivity to EN 54-10
- High optical interference immunity
- Selectable response speed and optical self test
- Low power consumption, 14 to 30 V dc supply
- IP65, operating -10°C to +55°C
- CPR and LPCB approvals, 3 year warranty
Standards and approvals: EN 54-10, CPR, LPCB
Specifications
Specifications
| Specification | 55000-019APO |
|---|---|
| Warranty | 3 year |
| Colour | Blue |
| Weight | 2000g |
| Materials housing | Die-cast zinc alloy |
| Product length | 142mm | 5.59in |
| Product width | 108mm | 4.25in |
| Product depth | 82mm | 3.23in |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature (min) | -10°C | 14°F |
| IP rating | Designed to |
| IP rating Value | IP65 |
| Storage temperature (max) | 65°C |
| Storage temperature (min) | -20°C |
| Storage temperature | -20 to 65°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
