Apollo XP95 Flame Detector (IR3)
A loop powered addressable flame detector for areas where open flaming fires may be expected, sensing the low frequency flicker of infra-red radiation from flames. It works with the Discovery and XP95 protocols.

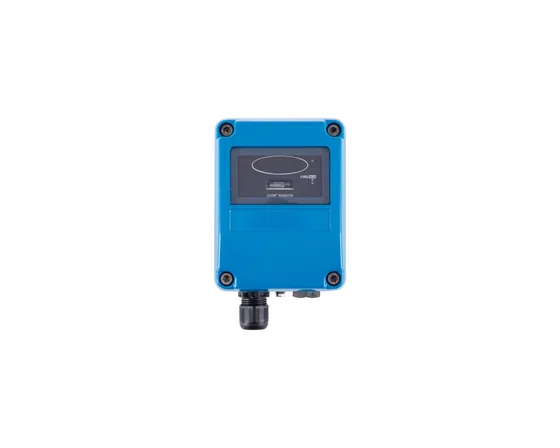

Authorised distributor for ApolloApollo Conventional Flame Detector (UV/IR2)
A conventional flame detector that combines UV and IR2 sensing with signal processing, designed to avoid false alarms in difficult situations such as flickering blackbody radiation or arc welding.
- UV and IR2 sensing with signal processing
- Listed with Class 1 sensitivity to EN 54-10
- 90° field of view
- Selectable response speed and optical self test
- High optical interference immunity and low power consumption
- CPR and LPCB approvals, 3 year warranty
Standards and approvals: CPR, LPCB
Specifications
Specifications
| Specification | 55000-064APO |
|---|---|
| Warranty | 3 year |
| Colour | Blue |
| Weight | 1000g |
| Materials housing | Die-cast zinc alloy |
| Product length | 142mm | 5.59in |
| Product width | 108mm | 4.25in |
| Product depth | 82mm | 3.23in |
| Number of cable gland entries | 2 |
| Cable gland entries size | 20mm |
| Range of view (at 25m) | 0.1m² n-heptane |
| Range of view (at 35m) | 0.2m² n-heptane |
| Range of view (at 45m) | 0.4m² n-heptane |
| Field of view | 90° |
| Spectral response (min): UV | 185μm |
| Spectral response (max): UV | 260μm |
| Spectral response: UV | 185 to 260μm |
| Spectral response: IR | 0.9 to 1.7μm |
| Spectral response (max): IR | 1.7μm |
| Spectral response (min): IR | 0.9μm |
| Maximum power-up time | 2 seconds |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 14V dc |
| Supply voltage (Vmin-Vmax) | 14 to 28V dc |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -10 to 85°C | 14 to 185°F |
| Operating temperature (max) | 85°C | 185°F |
| Operating temperature (min) | -10°C | 14°F |
| Storage temperature (max) | 65°C |
| Storage temperature (min) | -20°C |
| Storage temperature | -20 to 65°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
