Apollo XP95 Flame Detector (IR3)
A loop powered addressable flame detector for areas where open flaming fires may be expected, sensing the low frequency flicker of infra-red radiation from flames. It works with the Discovery and XP95 protocols.

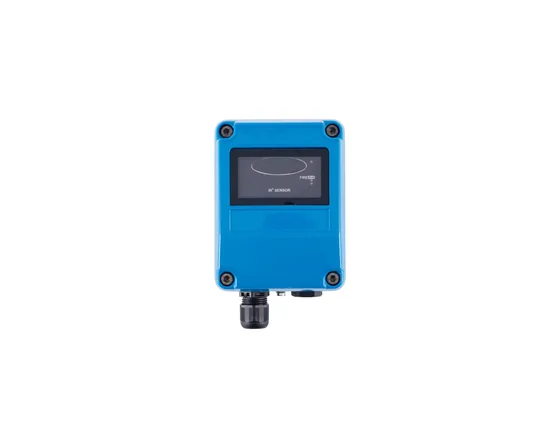

Authorised distributor for ApolloApollo XP95 Flame Detector (IR2)
An addressable flame detector with two sensors reading different IR wavelengths, so it can tell flames from other sources of radiation. It has a 90° field of view and covers up to 40 m.
- 90° field of view, up to 40 m coverage
- Remote optical self-test
- Detects through films of oil, dust, water and ice
- Works with the Discovery and XP95 protocols
- 17 to 28 V dc supply, -10 to 55°C, IP65
- CPR, FG and LPCB approvals, 3 year warranty
Standards and approvals: CPR, FG, LPCB
Specifications
Specifications
| Specification | 55000-280APO |
|---|---|
| Warranty | 3 year |
| Colour | Blue |
| Weight | 1000g |
| Materials housing | Die-cast zinc alloy |
| Product length | 142mm | 5.59in |
| Product width | 108mm | 4.25in |
| Product depth | 82mm | 3.23in |
| Number of cable gland entries | 2 |
| Cable gland entries size | 20mm |
| Range of view (at 25m) | 0.1m² n-heptane |
| Range of view (at 35m) | 0.2m² n-heptane |
| Range of view (at 45m) | 0.4m² n-heptane |
| Field of view | 90° |
| Sensitivity | High-Class 1Low-Class 3 |
| Maximum power-up time | 4 seconds |
| Quiescent current | 2200μA |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature (min) | -10°C | 14°F |
| IP rating Value | IP65 |
| Storage temperature (max) | 65°C |
| Storage temperature (min) | -20°C |
| Storage temperature | -20 to 65°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
