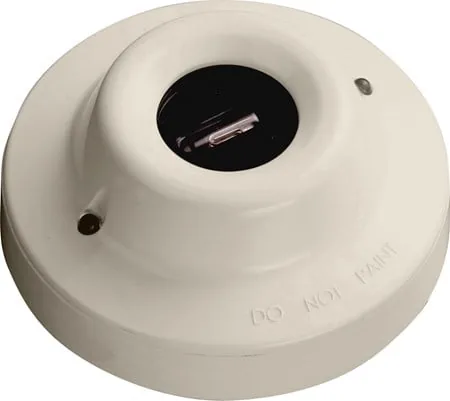

Authorised distributor for ApolloApollo XP95 UV Flame Detector, Base Mounted
A compact UV flame detector that fits into a Discovery or XP95 base, for enclosed indoor areas where open fires may be expected. Its single UV sensor with a narrow spectral response reacts quickly to flames up to 25 m away, including steady flames with no flicker.
- Fits Discovery or XP95 detector bases
- Responds to stationary flames with no flicker
- Flames detected up to 25 m away, 90° field of view
- Loop powered, 17 to 28 V dc supply
- -40 to 70°C, IP66
- CPR, FG and LPCB approvals, 3 year warranty
Standards and approvals: CPR, FG, LPCB
Specifications
Specifications
| Specification | 55000-022APO |
|---|---|
| Warranty | 3 year |
| Applications | Car parks/loading bays, Hospitals, Warehouses |
| Colour | White |
| Weight | 150g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 40mm | 1.57in |
| Product diameter | 100mm | 3.94in |
| Sensing window material | Quartz |
| Sensing window thickness | 2mm |
| Range of view (at 25m) | 0.1m² n-heptane |
| Field of view | 90° |
| Spectral response (min): UV | 185μm |
| Spectral response (max): UV | 260μm |
| Spectral response: UV | 185 to 260μm |
| Sensitivity | High-Class 1Low-Class 3 |
| Chamber type | Chevron |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Maximum power-up time | 4 seconds |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -40°C | -40°F |
| IP rating Value | IP66 |
| Storage temperature (max) | 85°C |
| Storage temperature (min) | -40°C |
| Storage temperature | -40 to 85°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
