Apollo XP95 Flame Detector (IR2)
An addressable flame detector with two sensors reading different IR wavelengths, so it can tell flames from other sources of radiation. It has a 90° field of view and covers up to 40 m.

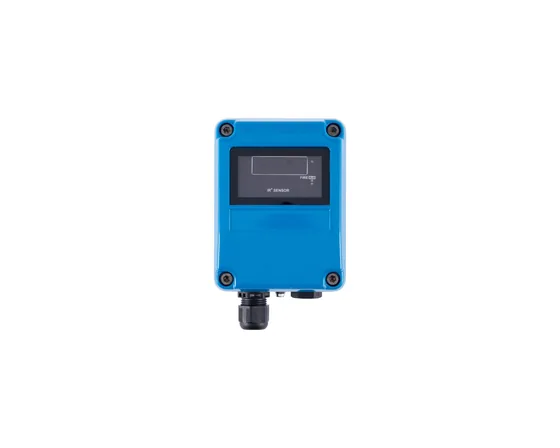

Authorised distributor for ApolloApollo XP95 Flame Detector (IR3)
A loop powered addressable flame detector for areas where open flaming fires may be expected, sensing the low frequency flicker of infra-red radiation from flames. It works with the Discovery and XP95 protocols.
- Responds to flickering flames, including ones invisible to the naked eye
- Detects through films of oil, dust, water and ice
- False alarms from lighting or flickering sunlight kept to a minimum
- Loop powered
- CPR and LPCB approvals, operating -10 to 55°C
- Blue die-cast zinc alloy body, 3 year warranty
Standards and approvals: CPR, LPCB
Specifications
Specifications
| Specification | 55000-020APO |
|---|---|
| Warranty | 3 year |
| Colour | Blue |
| Weight | 2000g |
| Materials housing | Die-cast zinc alloy |
| Product length | 142mm | 5.59in |
| Product width | 108mm | 4.25in |
| Product depth | 82mm | 3.23in |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature (min) | -10°C | 14°F |
| Storage temperature (max) | 65°C |
| Storage temperature (min) | -20°C |
| Storage temperature | -20 to 65°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
