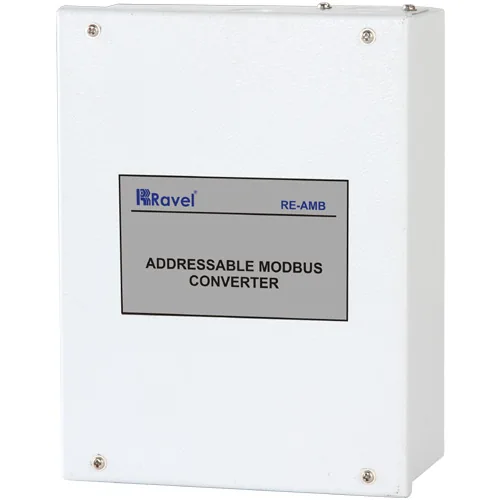

Dealer for RavelRavel Addressable Modbus Converter
A Modbus converter that gives the full status of an Avani panel's detectors, inputs and outputs over RS232 or RS485.
- Full status of all detectors, inputs and outputs
- Modbus output on RS232 and RS485
- Master and slave interrogation modes
- 24 V DC, IP50
Specifications
Specifications
| Specification | RE-AMB |
|---|---|
| Operating Voltage | 24 VDC |
| Operating Temperature | 0°C to 49°C / 32 to 120°F |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/96 ±3° F. |
| Standby current | 0.1 Amps Max. |
| Cabinet Finish | Epoxy Powder coated |
| Communication Interface | RS485/RS232/td> |
| IP Rating | Ip50 |
| Cable Entry | 3 X Ø 19mm Knockout in top of the cabinet. |
| Size | (150L X 200H X 80D) mm |
| Weight | 0.5 Kg. Approx. |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
