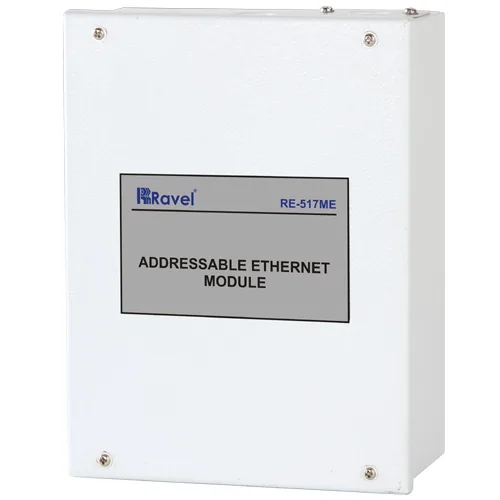

Dealer for RavelRavel TCP/IP Ethernet Module
An Ethernet module that connects a Ravel fire alarm panel to a computer network through an RJ45 port. Ravel lists it on both its multi loop and conventional pages.
- 10/100M auto sensing Ethernet, RJ45 connection
- Ready to use TCP/IP firmware, TCP server and UDP modes
- Configured by web browser, serial console, Telnet or Windows utility
- Works with Avani panels and Ravel monitoring software
- 24 V DC, IP50, epoxy powder coated cabinet
Specifications
Specifications
| Specification | Details | RE-517ME |
|---|---|---|
| Operating Voltage | 24 VDC | 24 VDC |
| Operating Temperature | 0°C to 49°C / 32 to 120°F | 0OC to 49OC / 32 to 120OF. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/96 ±3° F. | 93 ± 2% RH (non-condensing) at 32 ±2° C/96 ±3° F. |
| Standby current | 0.4 Amps Max. | 0.4 Amps Max. |
| Cabinet Finish | Epoxy Powder coated | Epoxy Powder coated. |
| Communication Interface | RJ45 | Rj45. |
| IP Rating | Ip50 | Ip50. |
| Cable Entry | 3 X Ø 19mm Knockout in top of the cabinet. | 3 X Ø 19mm Knockout on top of the cabinet. |
| Size | (150L X 200H X 80D) mm | (150L X 200H X 80D) mm |
| Weight | 1.0Kg. Approx. | |
| Storage temperature | 0oC to 60oC. |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
