Ravel TCP/IP Ethernet Module
An Ethernet module that connects a Ravel fire alarm panel to a computer network through an RJ45 port. Ravel lists it on both its multi loop and conventional pages.

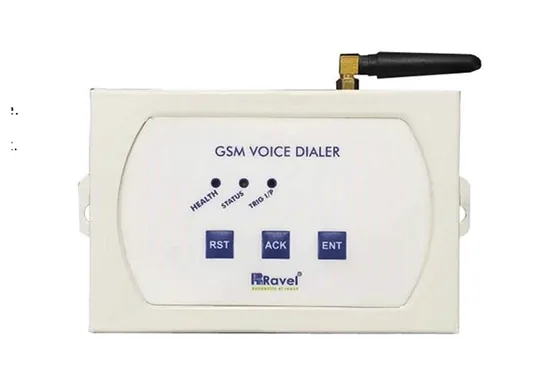

Dealer for RavelRavel GSM Voice Dialer
A GSM voice dialer for conventional systems that makes preconfigured voice calls and sends SMS alerts when triggered.
- Preconfigured voice call and SMS alerts
- Up to 10 mobile numbers
- 2 trigger inputs and 1 relay output
- 2G, 3G or 4G micro SIM
- Set up from an Android app
- 24 V DC, sheet metal enclosure, DIN rail or wall mounting
Specifications
Specifications
| Specification | RE-GVD |
|---|---|
| Operating Voltage | 24 VDC |
| Standby Current | 20mA Max. |
| Trigger Current | 100mA Max. |
| Operating Temperature | 0°C to 55°C. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ± 2° C / 90 ± 3° F. |
| SIM Card | Micro SIM. |
| Enclosure | Sheet Metal. |
| Weight | 200g. |
| Size | 85H x 105L x 35D in mm. |
| Mounting | Din Rail / Wall Mount. |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
