Ravel TCP/IP Ethernet Module
An Ethernet module that connects a Ravel fire alarm panel to a computer network through an RJ45 port. Ravel lists it on both its multi loop and conventional pages.

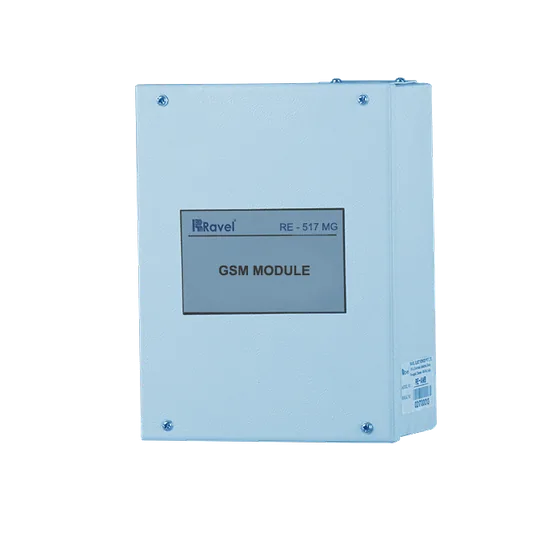

Dealer for RavelRavel GSM Module for Avani Panels
A GSM module that sends fire alarm notifications with location details from an Avani panel to mobile phones.
- Quad band GSM/GPRS: 850, 900, 1800 and 1900 MHz
- Built in SIM card holder
- Notifications include location details
- Notify on all events or by priority
- Up to 10 mobile numbers, set in the GSM module software
- Panel link over RS485, PC link over RS232
Specifications
Specifications
| Specification | Details |
|---|---|
| Operating Voltage | 24 VDC |
| Operating Temperature | 0°C to 49°C / 32° to 120° F |
| Storage temperature | 0°C to 60°C |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/96 ±3° F |
| Standby Current | 0.1 Amps Max |
| Cabinet Finish | Epoxy Powder coated |
| Communication Interface | Avani Panel to GSM Module via Rs485, GSM Module to PC interface via Rs232 |
| IP Rating | Ip 50 |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
More Ravel Networking & Software
Ravel Addressable TCP/IP to Modbus Converter
A converter that carries the full detector, input and output details of an Avani addressable panel as Modbus over TCP/IP.
Ravel Addressable Modbus Converter
A Modbus converter that gives the full status of an Avani panel's detectors, inputs and outputs over RS232 or RS485.
Ravel Modbus Converter, Conventional Range
A Modbus converter listed in Ravel's conventional range that gives the full status of a panel's detectors, inputs and outputs over RS232 or RS485.
Ravel TCP/IP to Modbus Converter for RE-900 Series
A converter that carries Modbus over TCP/IP on an intranet or the internet, acting as the interface between an RE-900 series conventional panel and Modbus.
Ravel GSM Voice Dialer
A GSM voice dialer for conventional systems that makes preconfigured voice calls and sends SMS alerts when triggered.
