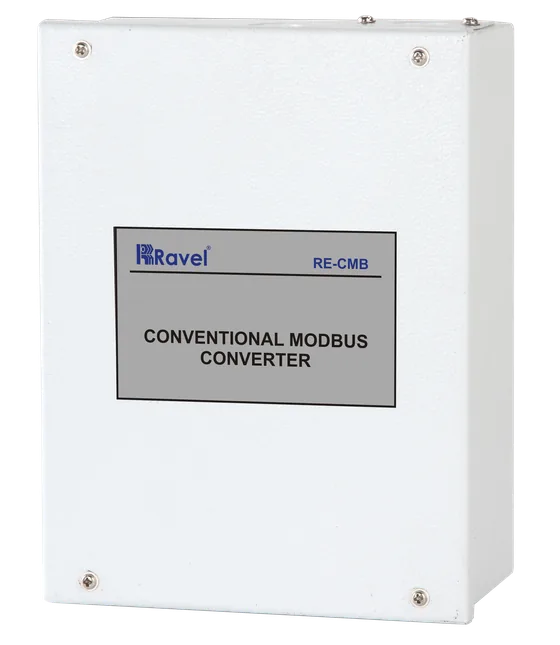

Dealer for RavelRavel Modbus Converter, Conventional Range
A Modbus converter listed in Ravel's conventional range that gives the full status of a panel's detectors, inputs and outputs over RS232 or RS485.
- Full status of all detectors, inputs and outputs
- RS232 and RS485 interfaces
- Master and slave interrogation modes
- Ravel lists Avani and RE-900 panels as compatible
- 24 V DC, IP50
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Operating Voltage | 24 VDC | |
| Operating Temperature | 0°C to 49°C / 32 to 120°F | |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/96 ±3° F. | |
| Standby current | 0.1 Amps Max.. | |
| Cabinet Finish | Epoxy Powder coated | |
| Communication Interface | RS485 / RS232 | |
| IP Rating | Ip50 | |
| Size | 120 X 110 X 60 (L X H X D) mm | |
| Cable Entry | 3 X Ø 19mm Knockout in top of the cabinet | |
| Weight | 0.5 Kgs. |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
