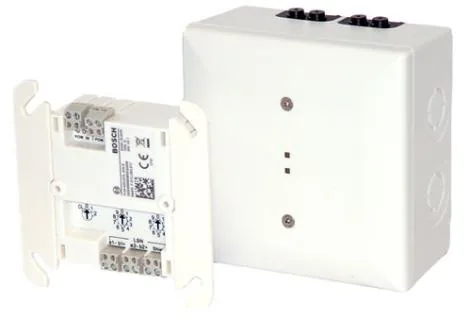

Dealer for BoschAn end-of-line module that terminates a 4-wire LSN line for Extended Line Supervision (ELS) and reports primary line and AUX line faults to the fire panel.
Standards and approvals: CMIM, CPR, VdS
| Specification | FLM-420-EOL4W-S |
|---|---|
| Weight (g) | 346 |
| Operating voltage (VDC) | 15 to 33 |
| Operating temperature (°C) | -20 to 55 |
| Storage temperature (°C) | -25 to 85 |
| Dimensions (H x W x D) (mm) | 126 x 126 x 71 |
| Color | White |
| Material | Trim ring: Polycarbonate/ABS |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
