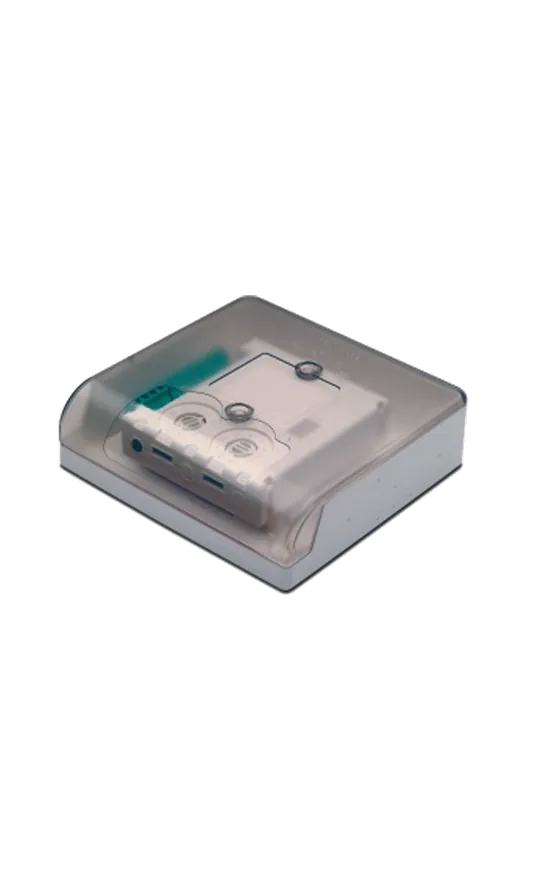

Dealer for Morley by HoneywellMorley by Honeywell MI-MM3E-S2 Mini Monitor Module
A small monitor module that fits in a single gang junction box directly behind the device it monitors, giving a two-wire initiating circuit for normally open fire alarm and security contacts.
- Fits a single gang box behind the monitored device, no rigid mounting needed
- Address set on rotary decade switches
- Two-wire initiating circuit for normally open contacts
- 15 to 32 VDC, 47K ohm end of line resistor
- 0°C to 49°C, 10% to 93% humidity non-condensing
- EN 54-18
Standards and approvals: EN 54-18: 2005
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | MI-MM3E-S2 |
|---|---|
| Nominal Operating Voltage | 15-32 VDC |
| Average Operating Current | 400 µA, 1 comm. every 5 seconds, 47K EOL |
| Maximum Alarm Current | 600 µA |
| EOL Resistance | 47K Ohms |
| Maximum Wiring Resistance | 1.5K Ohms |
| Maximum Voltage to EOL | 11 Volts |
| Maximum Short Circuit Current | 217 µA |
| Temperature Range | 0°C to 49°C |
| Humidity | 10% to 93% Non-condensing |
| Dimensions | 33mm H x 71mm W x 15mm D |
| Wire Length | 150mm minimum |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
