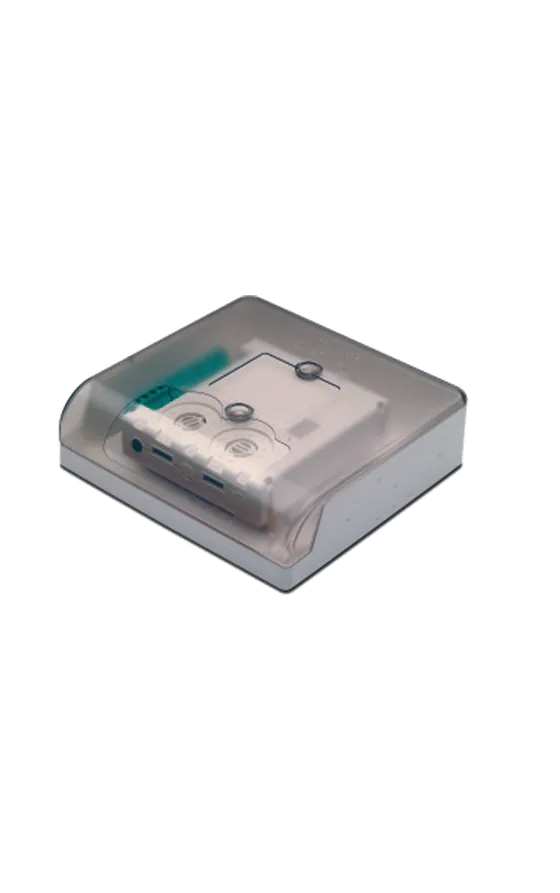

Dealer for Morley by HoneywellMorley by Honeywell MI/DISO Loop Isolator Module
A loop isolator for Morley-IAS intelligent panels that protects the addressable loop against wire-to-wire short circuits by disconnecting the faulty section.
- Placed between groups of sensors on the loop
- The isolators either side of a short open automatically and remove that section
- Fault detection delay 100 to 400 mS
- 15 to 30 Vdc, standby current 200μA at 24 Vdc maximum
- Weight 62g, -20°C to +60°C
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | MI/DISO |
|---|---|
| Dimensions (mm) | 93 x 94 x 23 (H x W x D) |
| Weight | 62g |
| Operating Temperature | -20 ºC to +60 ºC |
| Humidity | 0 to 95% maximum non-condensing |
| Operating voltage | 15 to 30 Vdc |
| Standby current | 200μA at 24 Vdc maximum |
| Fault detection delay | 100 to 400 mS |
| On resistance | 0.065Ω at 15 Vdc maximum |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
