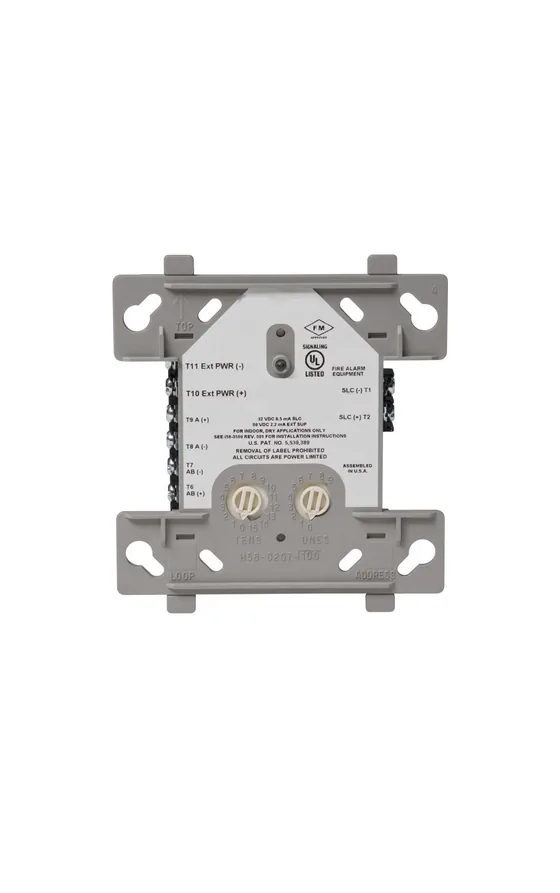

Dealer for NotifierNotifier FCM-1 Addressable Control Module
An intelligent addressable control module that supervises wiring to devices powered from an external supply, such as horns, strobes or bells, with Class A or Class B supervision.
- Class A or Class B supervision of the load wiring
- Activated manually or through panel programming, by zone or area
- 15 to 32 VDC operating voltage, low standby current
- Rotary address switches and panel-controlled status LED
- Mounts in a standard 4 inch junction box
- UL listed and FM approved, ULC listed for the A version, with CSFM, MEA and FDNY listings
Standards and approvals: UL: S635, ULC: S3705 (A version only), FM Approved, CSFM: 7300-0028:0219, MEA: 14-00-E, FDNY: COA #6067, #6065
Specifications
Specifications
| Specification | FCM-1 |
|---|---|
| Normal operating voltage | 15 to 32 VDC. |
| Maximum current draw | 6.5 mA (LED on). |
| Average operating current | 350 μA direct poll, 375 μA group poll with LED flashing, 485 μA Max. (LED flashing, NAC shorted.) |
| Maximum NAC Line Loss | 4 VDC. |
| Drain on external supply | 1.7 mA maximum using 24 VDC supply; 2.2 mA Maximum using 80 VRMS supply. |
| Max NAC Current Ratings | For class B wiring system, the current rating is 3A; For class A wiring system, the current rat- ing is 2A. |
| Temperature range | 32°F to 120°F (0°C to 49°C). |
| Humidity range | 10% to 93% non-condensing. |
| Dimensions | 4.5" (114.3 mm) high x 4" (101.6 mm) wide x 1.25" (31.75 mm) deep. Mounts to a 4" (101.6 mm) square x 2.125" (53.975 mm) deep box. |
| Accessories | SMB500 Electrical Box; CB500 Barrier |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
