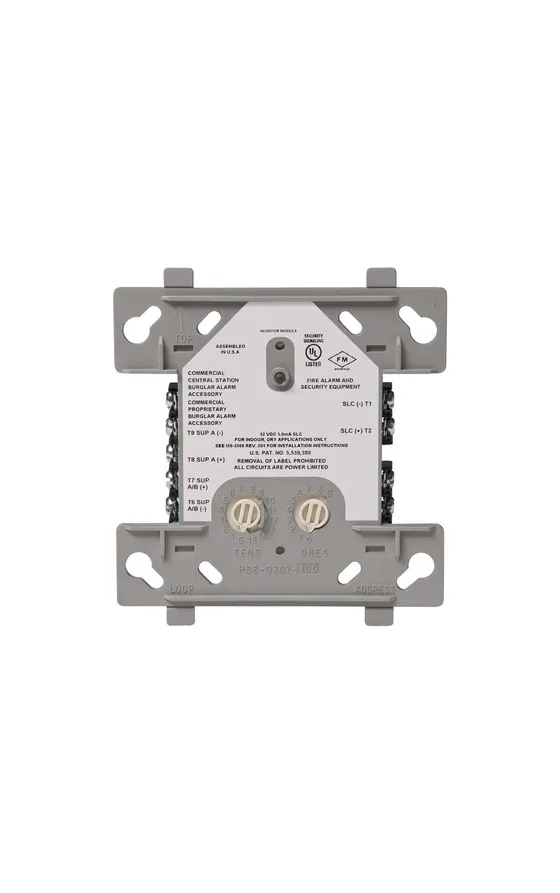

Dealer for NotifierNotifier FMM-101 Mini Monitor Module
A small intelligent monitor module that fits inside devices or junction boxes, supervising dry-contact devices or monitoring and powering two-wire smoke detectors.
- Smaller size fits inside devices or junction boxes
- Class B supervised wiring to the monitored device
- Direct-dial address entry, 01 to 159
- 15 to 32 VDC, 11 V maximum circuit voltage
- 0°C to 49°C, 10% to 93% humidity non-condensing
- UL and ULC listed, FM approved, with CSFM, MEA and FDNY listings
Standards and approvals: UL: S635, ULC: S635, FM Approved, CSFM: 7300-0028:0219, MEA: 457-99-E, FDNY: COA #6038 (NFS2-640, NFS-320), COA# 6058
Specifications
Specifications
| Specification | FMM-101 |
|---|---|
| Nominal operating voltage | 15 to 32 VDC. |
| Average operating current | 350 μA, 1 communication every 5 seconds, 47k EOL; 600 μA Max. (Communicating, IDC Shorted). |
| Maximum IDC wiring resistance | 40 ohms. |
| Maximum IDC Voltage | 11 Volts. |
| Maximum IDC Current | 400 μA. |
| EOL resistance | 47K ohms. |
| Temperature range | 32°F to 120°F (0°C to 49°C). |
| Humidity range | 10% to 93% noncondensing. |
| Dimensions | 1.3" (3.302 cm) high x 2.75" (6.985 cm) wide x 0.65" (1.651 cm) deep. |
| Wire length | 6" (15.24 cm) minimum. |
| Direct-dial entry of address | 01 to 159 on FlashScan loops, 01 to 99 on CLIP loops. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
