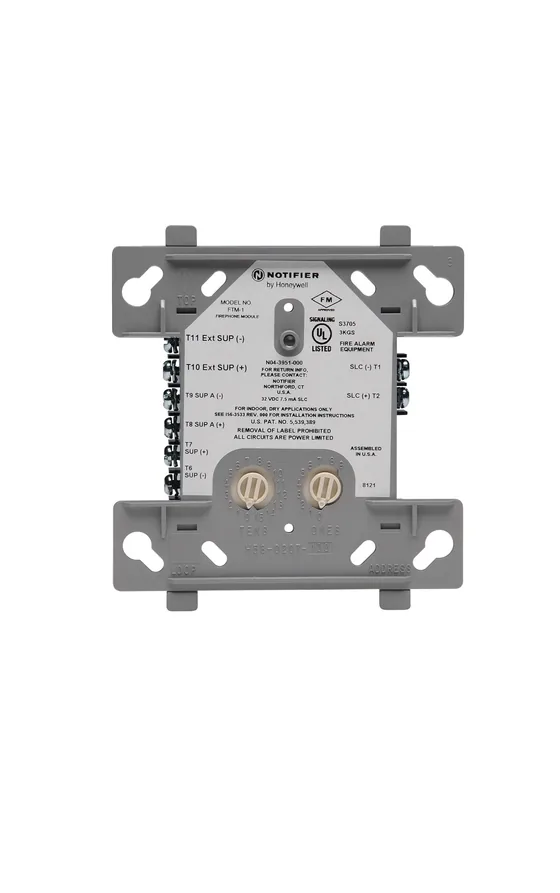

Dealer for NotifierNotifier FTM-1 Firephone Control Module
A module that lets the fire alarm panel monitor and control a circuit of up to two firefighter phones and connect remote phones to a central telephone console.
- Monitors and controls up to two firefighter phones
- Tells apart normal, off-hook and trouble conditions
- Two pairs of output terminals for fault-tolerant Style Z wiring
- Powered directly by the two-wire SLC loop, address 01 to 159 in FlashScan
- 15 to 32 VDC, 0°C to 49°C
- UL listed and FM approved, ULC listed as FTM-1A, with CSFM and FDNY listings
Standards and approvals: UL Listed: S635, ULC Listed: S635 (FTM-1A), FM Approved, CSFM: 7300-1653:0182, 7165-0028:0224, 7165- 0028:0243, FDNY: COA #6065, #6067
Specifications
Specifications
| Specification | Details |
|---|---|
| Normal operating voltage | 15 to 32 VDC. |
| Maximum current draw | 7.5 mA (LED on). |
| Average operating current | 7.5 mA group poll (FlashScan® mode) with LED flashing. |
| External supply voltage (between Terminals T3 and T4) | maximum 28 VDC. |
| EOL resistance | 3.9K ohms. |
| Temperature range | 32°F to 120°F (0°C to 49°C). |
| Humidity range | 10% to 93% non-condensing. |
| Dimensions | 4.5" (11.43 cm) high x 4" (10.16 cm) wide x 1.25" (3.175 cm) deep. Mounts to a 4" (10.16 cm) square x 2.125" (5.398 cm) deep box. |
| Weight | 6.3 oz. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
