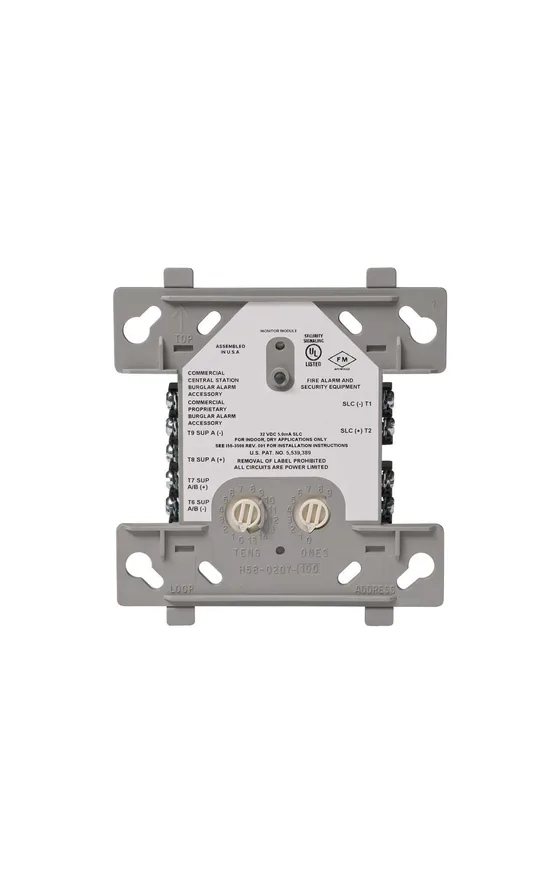

Dealer for NotifierNotifier FDM-1 Dual Monitor Module
A dual monitor module that gives two independent two-wire initiating device circuits at two consecutive addresses, for fire alarm, supervisory or security contacts.
- Monitors two separate Class B circuits
- Normally open fire alarm and supervisory contacts, or open or closed security contacts
- Single panel-controlled LED
- 15 to 32 VDC, 11 V maximum circuit voltage
- 0°C to 49°C, 10% to 93% humidity non-condensing
- UL and ULC listed, FM approved, with CSFM, MEA and FDNY listings
Standards and approvals: UL: S635, ULC: S635, FM Approved, CSFM: 7300-0028:0219, MEA: 457-99-E, FDNY: COA #6038 (NFS2-640, NFS-320), COA# 6058
Specifications
Specifications
| Specification | FDM-1 |
|---|---|
| Normal operating voltage range | 15 to 32 VDC. |
| Maximum current draw | 6.4 mA (LED on). |
| Average operating current | 750 μA (LED flashing). |
| Maximum IDC wiring resistance | 1,500 ohms. |
| Maximum IDC Voltage | 11 Volts. |
| Maximum IDC Current | 240 μA |
| EOL resistance | 47K ohms. |
| Maximum SLC Wiring resistance | 40 Ohms. |
| Temperature range | 32° to 120°F (0° to 49°C). |
| Humidity range | 10% to 93% (non-condensing). |
| Dimensions | 4.5" (11.43 cm) high x 4" (10.16 cm) wide x 2.125" (5.398 cm) deep. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
