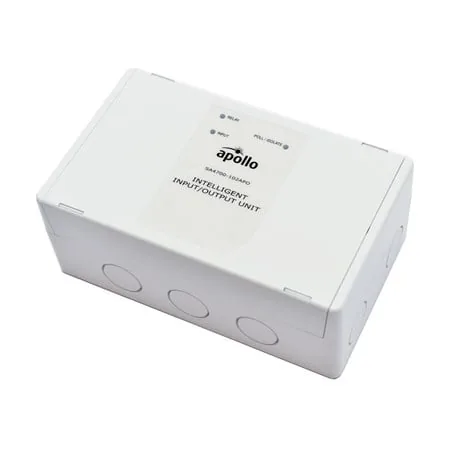

Apollo Intelligent Input/Output Module, 250V AC
An input/output module with two input channels for single pole, volt-free contacts and mains switching relay output contacts.
Authorised distributor for ApolloApollo Intelligent Input/Output Module
A loop device that monitors single pole, volt-free contact inputs and controls relay output contacts, linking the fire panel to other equipment. It works with XP95, Discovery and CoreProtocol.
- EN 54-17 and EN 54-18 certified
- Meets BS 7273-4 failsafe requirements
- Semi flush or surface mounting
- 17 to 35 V dc supply, 500 μA quiescent current, -40 to 70°C, IP52
- FG, LPCB, SBSC, BOSEC, VdS and CPR approvals
- 10 year warranty
Standards and approvals: EN 54-17, EN 54-18, FG, LPCB, SBSC, BOSEC, VdS, CPR
Specifications
Specifications
| Specification | SA4700-102APO |
|---|---|
| Warranty | 10 year |
| Colour | White |
| Weight | 244g |
| Product length | 60mm | 2.36in |
| Product width | 150mm | 5.91in |
| Product depth | 90mm | 3.54in |
| Relay output contact rating | 1A |
| Relay output rating tested at | 30V ac |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 13V |
| Protocol voltage | 5 to 13V peak to peak |
| Quiescent current | 500μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 35V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 35V dc |
| Polarity | L1 &, L2 are polarity sensitive |
| Battery powered | No |
| Power-up surge current | 0.9mA |
| Status indicator: Poll | Flashing green |
| Relay contact ratings | 1A |
| Contact rating tested at | 30V |
| Status indicator: relay active | Red |
| Status indicator: relay fault | Continuous, Yellow |
| Status indicator: Input active | Continuous, Red |
| Status indicator: Unit fault | Flashing yellow |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -40°C | -40°F |
| IP rating Value | IP52 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
