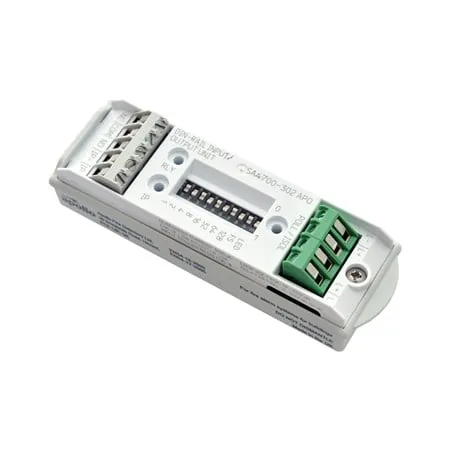

Authorised distributor for ApolloApollo Intelligent DIN-Rail Input/Output Module
A DIN-rail version of the Intelligent Input/Output Module, monitoring single pole, volt-free contact inputs and controlling relay output contacts from inside a panel or enclosure.
- DIN-rail mounting
- EN 54-17 and EN 54-18 certified
- Meets BS 7273-4 failsafe requirements
- 17 to 35 V dc supply, -40 to 70°C
- XP95, Discovery and CoreProtocol compatible
- FG, LPCB, SBSC, VdS, BOSEC and CPR approvals, 10 year warranty
Standards and approvals: EN 54-17, EN 54-18, FG, LPCB, SBSC, VdS, BOSEC, CPR
Specifications
Specifications
| Specification | SA4700-302APO |
|---|---|
| Warranty | 10 year |
| Colour | White |
| Weight | 48.4g |
| Product length | 33mm | 1.3in |
| Product width | 102mm | 4.02in |
| Product depth | 33mm | 1.3in |
| Relay output contact rating | 1A |
| Relay output rating tested at | 30V ac |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 13V |
| Protocol voltage | 5 to 13V peak to peak |
| Quiescent current | 500μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 35V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 35V dc |
| Relay contact ratings | 1A |
| Contact rating tested at | 30V |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -40°C | -40°F |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
