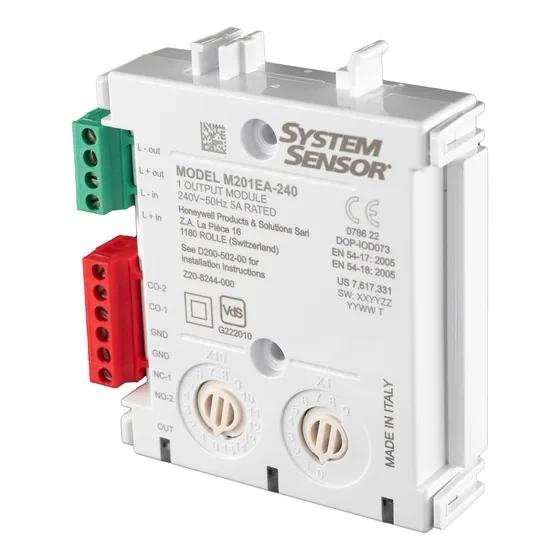

A loop-powered output module from the Series 200 plus range that controls an unsupervised double pole output for 240VAC loads, latching on or off on command from the panel.
Standards and approvals: BSI 7273-4, CPR, VdS, EN 62368-1
| Specification | M201EA-240 |
|---|---|
| Operating Voltage Range | 15 to 32VDC |
| LED Cutoff Voltage | 16.5 VDC |
| Maximum Standby Current | 75μA at 24VDC (no communications) |
| Maximum Alarm Current | 5.5mA at 24VDC, one communication each 5 seconds with LED blink enabled |
| Coil Activation/Deactivation Current | 76mA max for 12mS |
| Relay Specifications | 5A at 30VDC, 5A at 250VAC, resistive load | 1 x NO and 1 x NC contacts |
| Humidity | 5% to 95% Relative Humidity (non-condensing) |
| IP Rating | IP30 (IP44 in M200E-SMB) |
| Height | 22mm |
| Length | 93mm (including terminal blocks) |
| Width | 99mm (including DIN brackets) |
| Weight | 118g |
| Maximum Wire Gauge for Terminals | 2.5mm2 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
