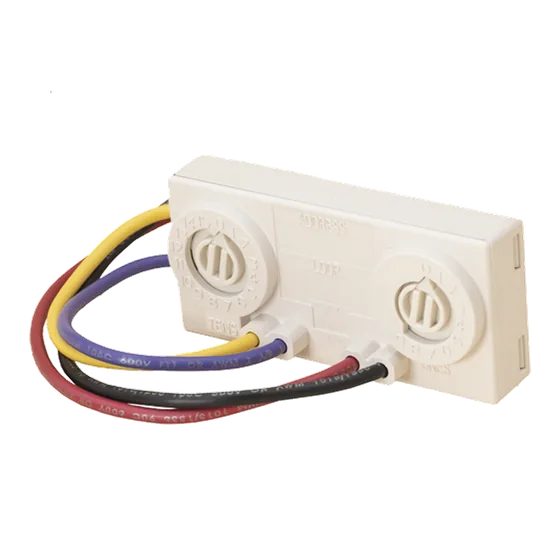

System Sensor M501MEA Mini Addressable Input Module
A compact addressable input module for normally open contact devices such as security contacts, waterflow switches and call points, small enough to fit inside devices or junction boxes.
- Two-wire initiating circuit for normally open contact devices, Class B wiring
- Reports normal, open or short, plus the full analogue supervision measurement
- Advanced protocol with up to 159 addresses
- Rotary address switches, 110 uA nominal standby current
- 15 to 32 V, 0 to 49°C, 10 to 93% RH, 57 g
- Complies with EN 54-18, CPD
Standards and approvals: EN54-18, CPD
Specifications
Specifications
| Specification | M501MEA |
|---|---|
| Operating Voltage Range | 15-32 V |
| Supervisory Loop Current (normal) | 87-114 uA |
| Standby Current for comm line | 7 V |
| Nominal Standby Current | 110 uA |
| End-of-Line Resistance | 47 kohm |
| Operating Temperature Range | 0-49°C |
| Operating Humidity Range | 10-93% RH |
| Height | 33 mm |
| Length | 71 mm |
| Width | 15 mm |
| Weight | 57 g |
| Maximum Wire Gauge for Terminals | N/A |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
